With security

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 1P connector (A) from horn (B).

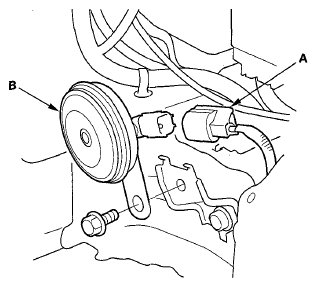

    Fig 1: Identifying Horn 1P Connector Terminals
    G05959971Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the horn by connecting battery power to the terminal (A) and grounding the bracket (B). The horn should sound.
    Fig 2: Identifying Terminal & Bracket
    G05959972Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If it fails to sound, replace it.
