Circuit Diagram

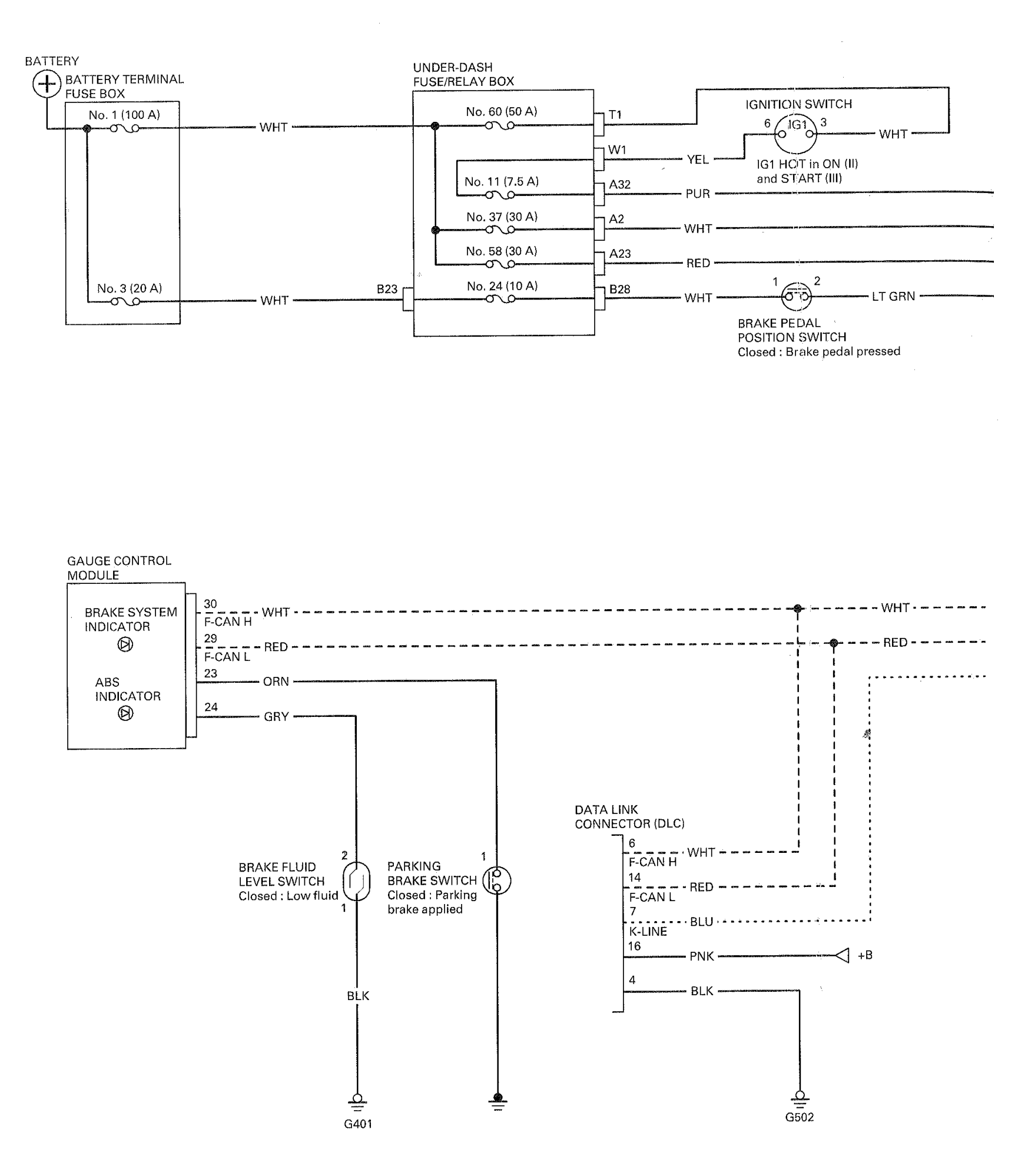

Fig 1: Identifying ABS Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

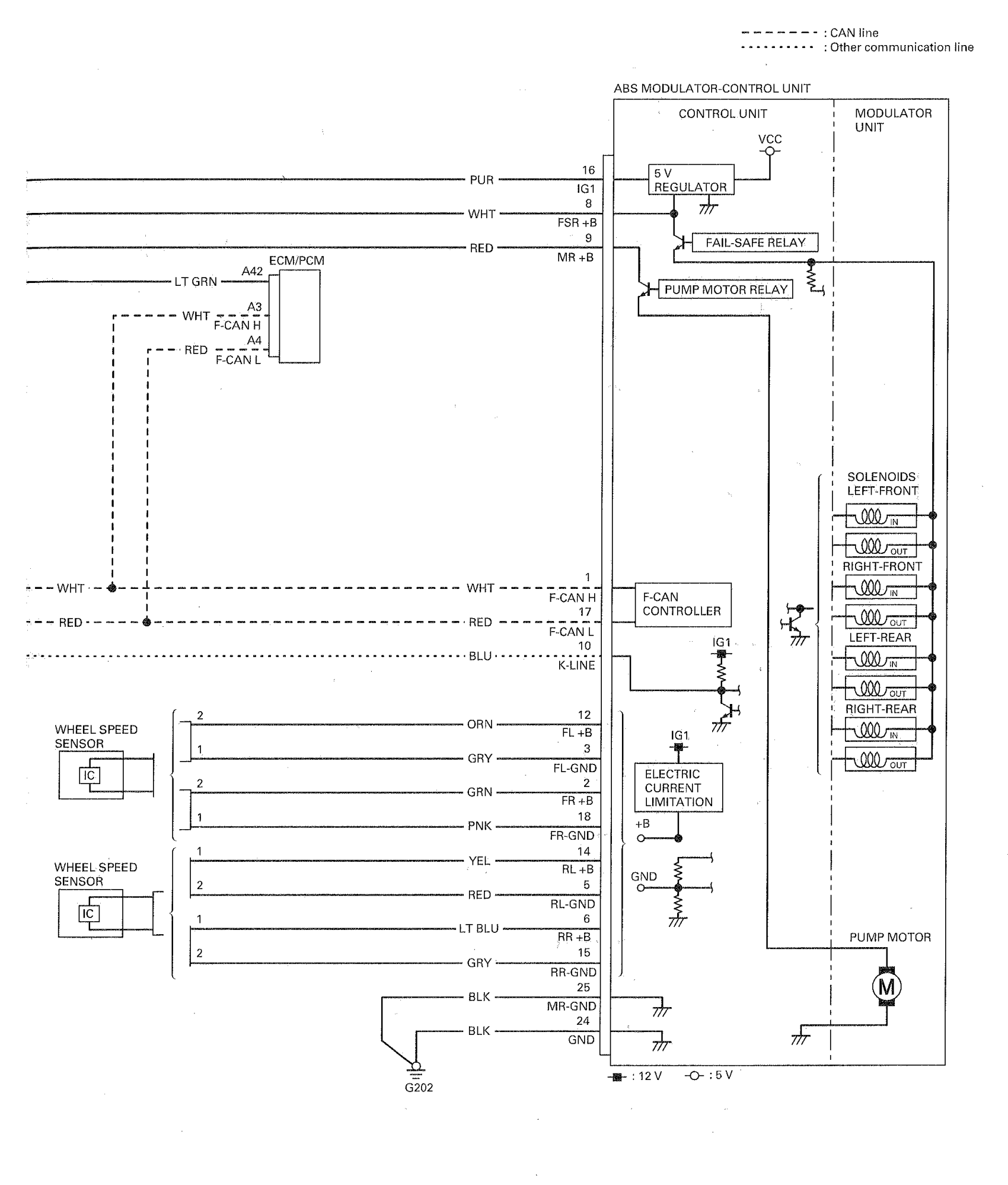

Fig 2: Identifying ABS Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

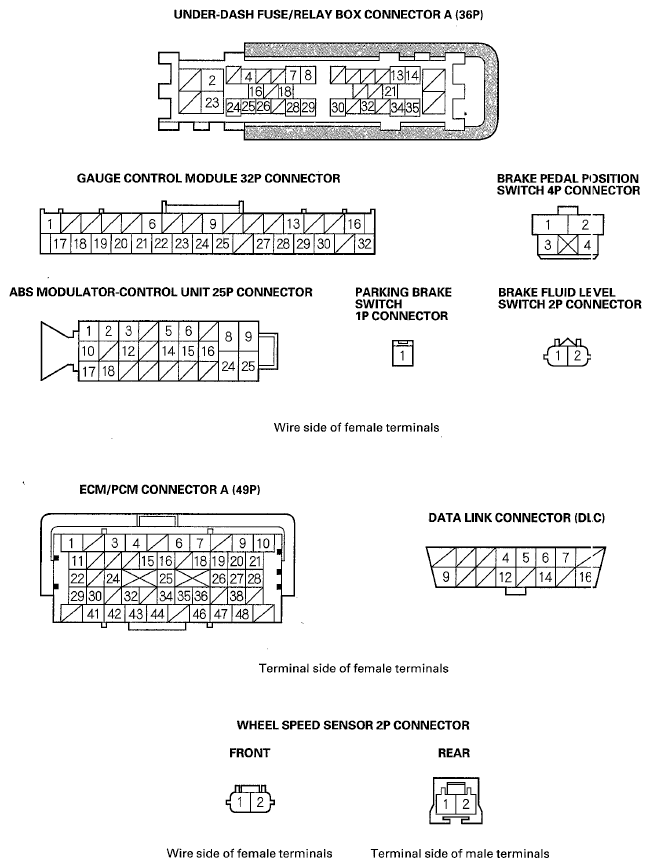

Fig 3: Identifying ABS Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
