ABS Modulator-Control Unit Inputs and Outputs For 25P Connector

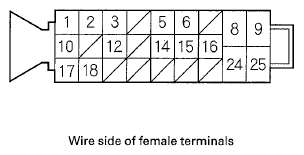

TERMINAL REFERENCE TABLE
| Terminal number | Wire color | Terminal sign | Description | Signal |
|---|---|---|---|---|
| 1 | WHT | CAN-H | F-CAN communication circuit | -- |
| 2 | GRN | FR+B | Detects right-front wheel speed sensor signal | -- |
| 3 | GRY | FL-GND | Detects left-front wheel speed sensor signal | -- |
| 5 | RED | RL-GND | Detects left-rear wheel speed sensor signal | -- |
| 6 | LT BLU | RR+B | Detects right-rear wheel speed sensor signal | -- |
| 8 | WHT | FSR+B | Power source for the fail-safe relay | Battery voltage (about 12 V) at all times |
| 9 | RED | MR+B | Power source for the motor relay | Battery voltage (about 12 V) at all times |
| 10 | BLU | K-LINE | Communication with HDS | -- |
| 12 | ORN | FL+B | Detects left-front wheel speed sensor signal | -- |
| 14 | YEL | RL+B | Detects left-rear wheel speed sensor signal | -- |
| 15 | GRY | RR-GND | Detects right-rear wheel speed sensor signal | -- |
| 16 | PUR | IG1 | Power source for activating the system | With ignition switch ON (II): battery voltage (about 12 V) |
| 17 | RED | CAN-L | F-CAN communication circuit | -- |
| 18 | PNK | FR-GND | Detects right-front wheel speed sensor signal | -- |
| 24 | BLK | GND | Ground for the ABS modulator-control unit | Less than 0.2 V at all times |
| 25 | BLK | MR-GND | Ground for the pump motor | Less than 0.2 V at all times |
