System Outline

The ABS includes the ABS modulator-control unit, the wheel speed sensors, and the system indicators in the gauge control module. The ABS modulator-control unit controls the anti-lock brake and the brake distribution functions.

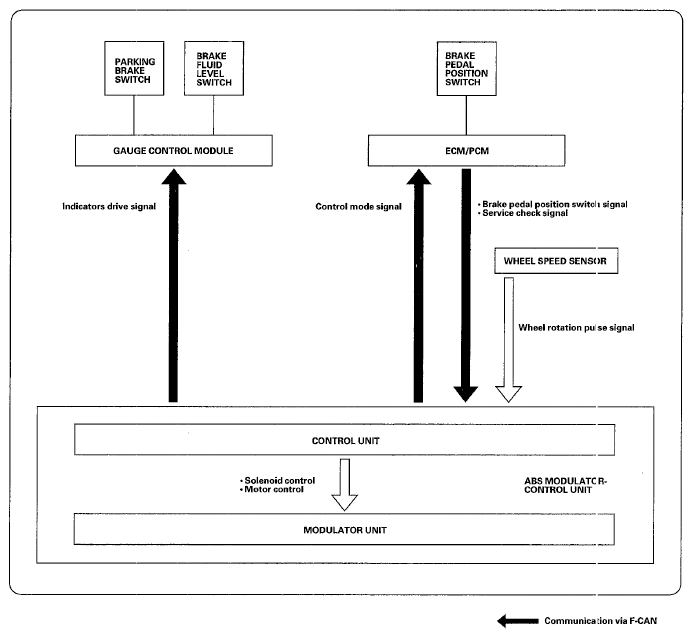

Fig 1: Identifying ABS Modulator-Control Unit Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
