Engine Oil Replacement

Warm up the engine.
Remove the drain bolt (A), and drain the engine oil.

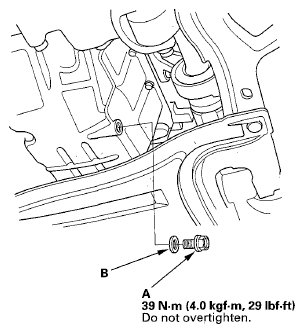

Fig 1: Drain Bolt & Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain bolt with a new washer (B).
Refill the engine with the recommended oil (see LUBRICANTS AND FLUIDS ).
Capacity

At Oil Change: 3.4 L (3.6 US qt)

At Oil Change Including Filter: 3.6 L (3.8 US qt)

After Engine Overhaul: 4.2 L (4.4 US qt)

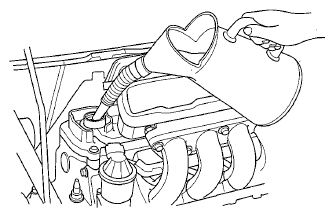

Fig 2: Refilling Recommended Engine Oil
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Run the engine for more than 3 minutes, then check the oil level and for any oil leakage.
If the Maintenance Minder required engine oil replacement, reset the Maintenance Minder (see MAINTENANCE REQUIRED REMINDER LIGHT ), and this procedure is complete. If the Maintenance Minder did not require engine oil replacement, go to step 7.
Turn the ignition switch to LOCK (0).
Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on GENERAL TROUBLESHOOTING INFORMATION ).
Turn the ignition switch to ON (II).
Make sure the HDS communicates with the vehicle and the ECM/PCM. If it does not communicate (see DLC CIRCUIT TROUBLESHOOTING ).
Select GAUGE in the BODY ELECTRICAL with the HDS.
Select ADJUSTMENT in GAUGES with the HDS.
Select MAINTENANCE MINDER in the ADJUSTMENT with the HDS.
Select RESET in the MAINTENANCE MINDER with the HDS.
Select RESETTING THE ENGINE OIL LIFE with the HDS.
