Oil Pressure Switch Test

  1. Disconnect the oil pressure switch connector (A) from the engine oil pressure switch (B).

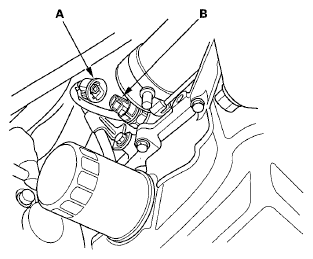

    Fig 1: Identifying Oil Pressure Switch Connector & Engine Oil Pressure Switch
    G05952660Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check for continuity between the oil pressure switch terminal and the engine (ground). There should be continuity with the engine stopped. There should be no continuity with the engine running.
  3. Connect the oil pressure switch connector to the oil pressure switch.
