DVD-ROM Replacement

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Check any official Honda service website for more service information about the navigation system.

Turn the ignition switch to ON (II).
Push the PC card eject button (A) to eject the customer's PC card (if installed). Power is not required for this function.

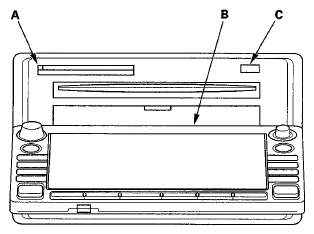

Fig 1: Identifying PC Card Eject Button & Plastic Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Open the plastic cover (B) for the navigation DVD slot. Do not remove the plastic cover.
Push the CD eject button (C), and navigation DVD eject button and remove the discs (holding both discs by their edges to avoid fingerprints). To avoid scratches, place the navigation DVD, and customer's CD in a jewel case if available.
Insert the new DVD-ROM with the white label facing up.
Close the front cover. Do not turn the ignition switch to LOCK (0); watch the navigation screen until the data is down loaded to the audio-navigation unit.
Do MAP MATCHING .
NOTE: After servicing, the front cover and PC card slot door must be closed.
Reinsert the customer's CD and PC card.
