Microphone Replacement

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front individual map light lens (A) using a flat-tip screwdriver.

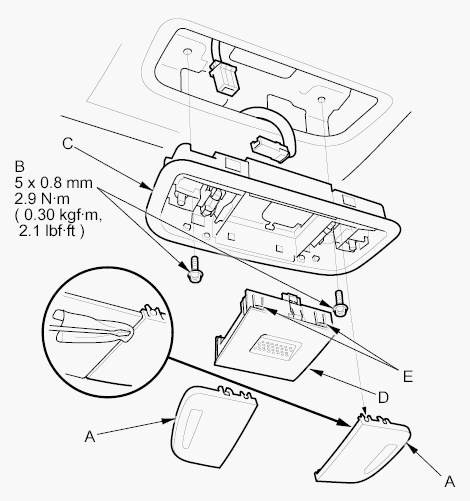

    Fig 1: Front Map Light Housing With Torque Specifications
    G05960363Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (B), then disconnect the connectors, and remove the map light housing (C).
  3. Carefully pry off the microphone housing (D) from the map light housing while pressing the retaining tabs (E).
  4. Install the microphone in the reverse order removal.
