Save Users Memory: Import

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

After installing the customer's original DVD in the new audio-navigation unit, allow the system to boot up. Insert the PC card in the new audio-navigation unit and enter the navigation diagnostic mode.

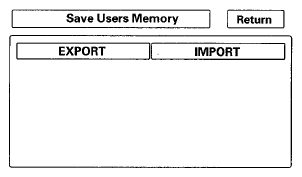

Fig 1: Identifying Screen Display - Import
G05960329Courtesy of AMERICAN HONDA MOTOR CO., INC.

Select YES on the Import Confirmation screen.

Import moves the two files stored by the Export process from the PC card to the new audio-navigation unit. When the transfer is finished (a few seconds) the system will automatically reboot. After the system reboots, remove the PC card from the PC slot.

If the Import button is grayed out, follow the troubleshooting in the FAQs below. The customer's files can only be transferred to a new navigation control unit if the Model and the Program Flash shown on the Version screen are the same.
