Hard Key

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

This diagnostic screen checks the status of the hard buttons surrounding the navigation display. When you press each hard button, the corresponding item on the screen should turn blue. Touch the return key, or press and hold the joystick to exit.

NOTE: VOL/PWR knob operation (turn, push) and OPEN/CLOSE button operation are not displayed.

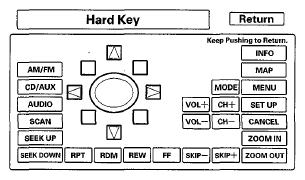

Fig 1: Identifying Screen Display - Hard Key

Courtesy of AMERICAN HONDA MOTOR CO., INC.
