A/C Compressor Thermal Protector Replacement

Remove the bolt and the holder (A). Disconnect the field coil connector (B), then remove the thermal protector (C).

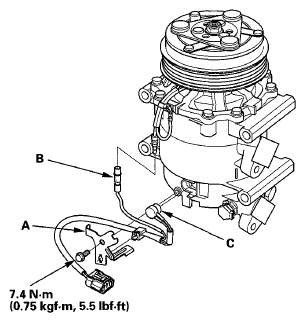

Fig 1: Holder, Field Coil Connector & Thermal Protector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the thermal protector (A) with a new one, and apply silicone grease (P/N 08798-9028) (6) to the bottom of the thermal protector.

Fig 2: Applying Silicone Grease To Bottom Of Thermal Protector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the thermal protector in the reverse order of removal.
