How to Clear A/T DTCs

  1. Connect the HDS to the DLC (A).

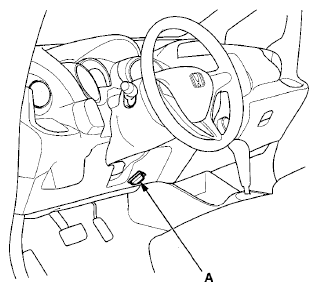

    Fig 1: Identifying Data Link Connector
    G06768280Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch to ON (II).
  3. Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  4. Clear the DTC (s) with the HDS.
