How to Display DTCs On the Gauge Control Module

Set the B-CAN System Diagnosis Test Mode 1 (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE 1 AND TEST MODE 2 (WITHOUT THE HDS)  ). While in Test Mode 1, the DTCs which have been detected and stored individually by various B-CAN (Body-controller Area Network) units, will be shown one by one on the LCD display when the communication between the MICU and the gauge control module is normal. To scroll through the DTCs, press the select/reset button.

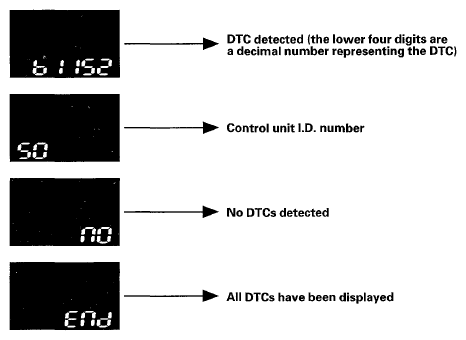

Fig 1: Identifying Screen Display DTCS On Gauge Control Module

Courtesy of AMERICAN HONDA MOTOR CO., INC.

The unit that has stored the code can be identified by the number shown on the odo/trip display.
