Audio Remote Switch Replacement

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ). Also review the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before doing repairs or service.

Remove the steering wheel (see STEERING WHEEL REMOVAL ).

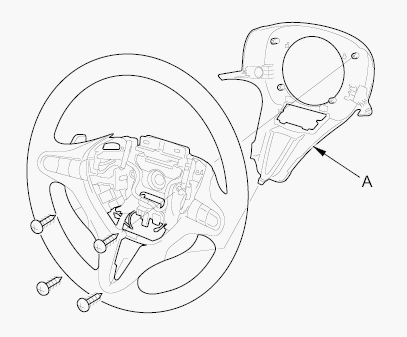

Remove the screws, and steering wheel rear cover (A).

Fig 1: Identifying Steering Wheel Rear Cover And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the paddle shifter + (upshift switch), (see PADDLE SHIFTER + (UPSHIFT SWITCH) REPLACEMENT ).
Also remove the paddle shifter - (downshift switch), (see PADDLE SHIFTER -- (DOWNSHIFT SWITCH) REPLACEMENT ).

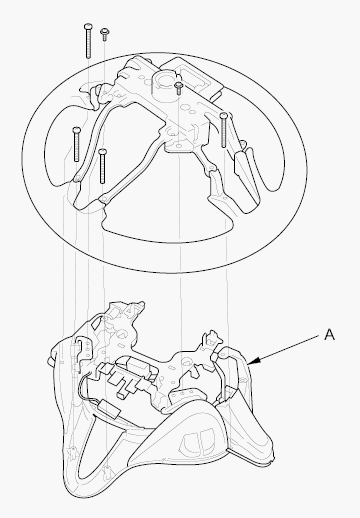

Remove the screws and the steering wheel trim (A).

Fig 2: Identifying Steering Wheel Trim And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

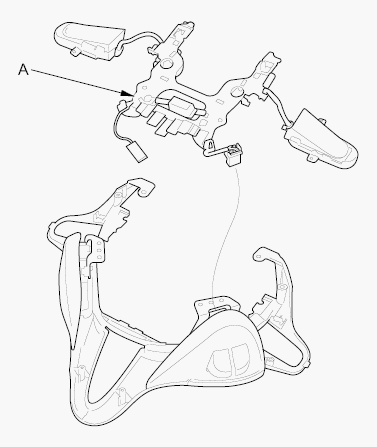

Disconnect the connectors, and remove the harness guide (A).

Fig 3: Identifying Steering Wheel Harness Guide
Courtesy of AMERICAN HONDA MOTOR CO., INC.

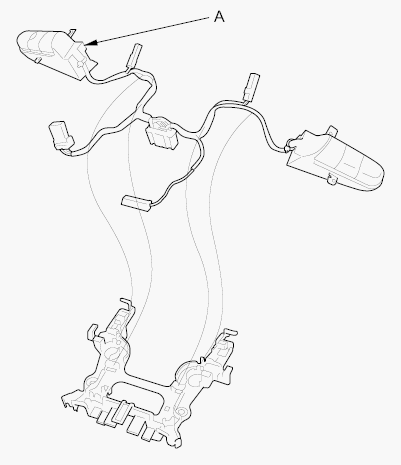

Remove the audio remote switch (A).

Fig 4: Identifying Steering Wheel Harness And Audio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio remote switch in the reverse order of removal.
