Sound Proofing / Insulation: Locations

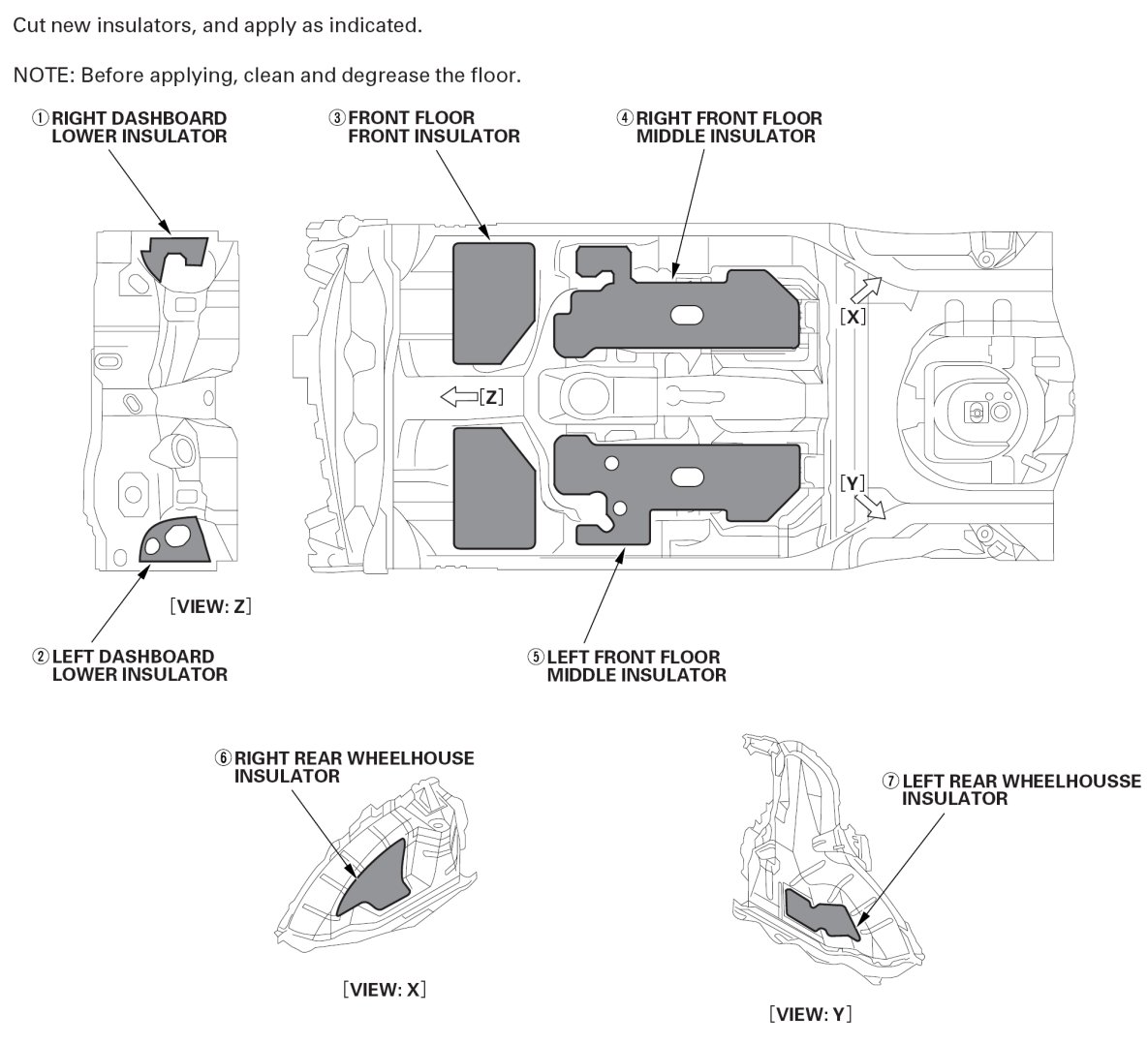

Insulator Locations:

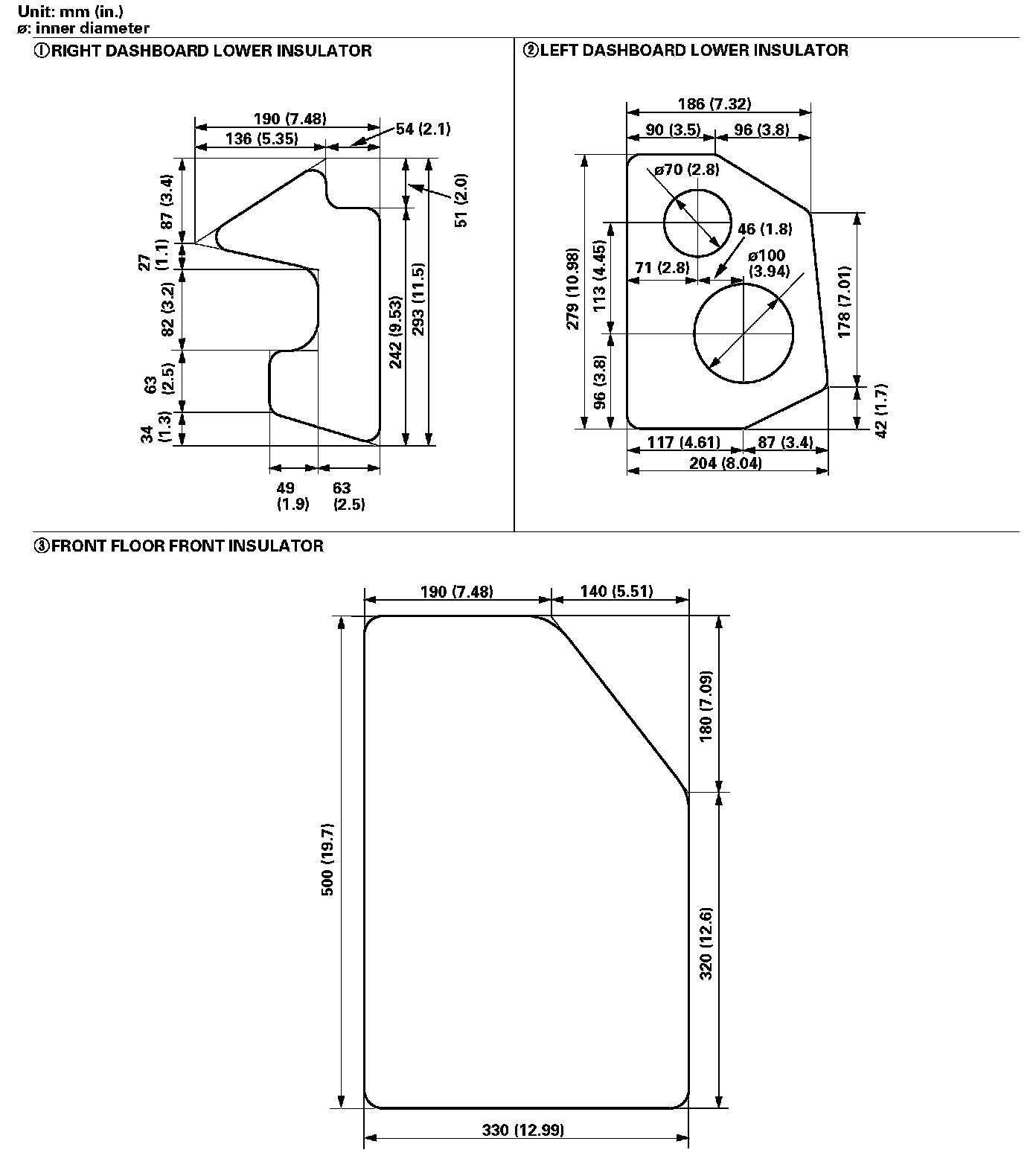

Insulator Sizes (Part 1):



Insulator Sizes (Part 2):

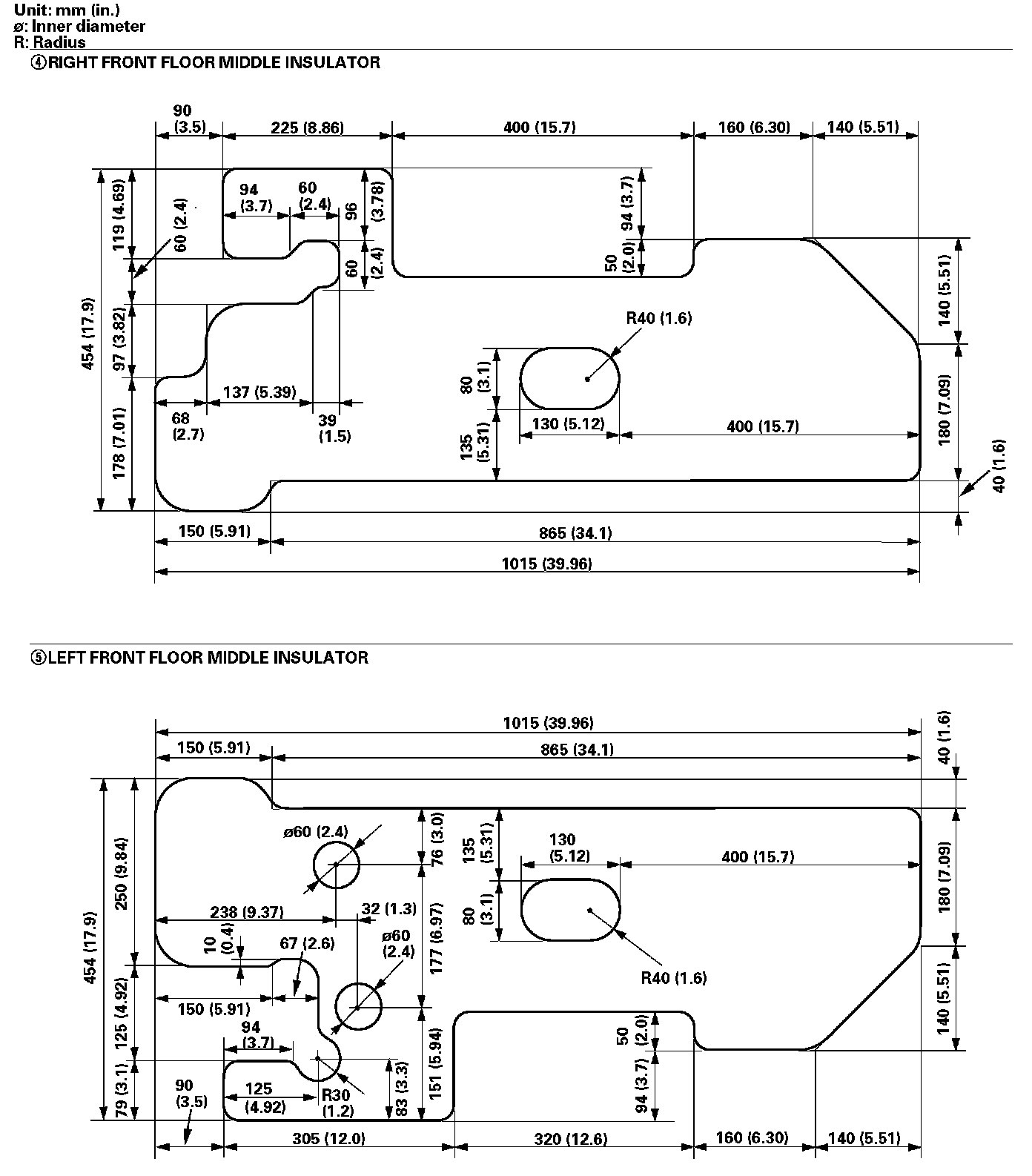

Insulator Sizes (Part 3):
