Rear Strake Replacement

Rear Strake Replacement

NOTE: Take care not to scratch the body.

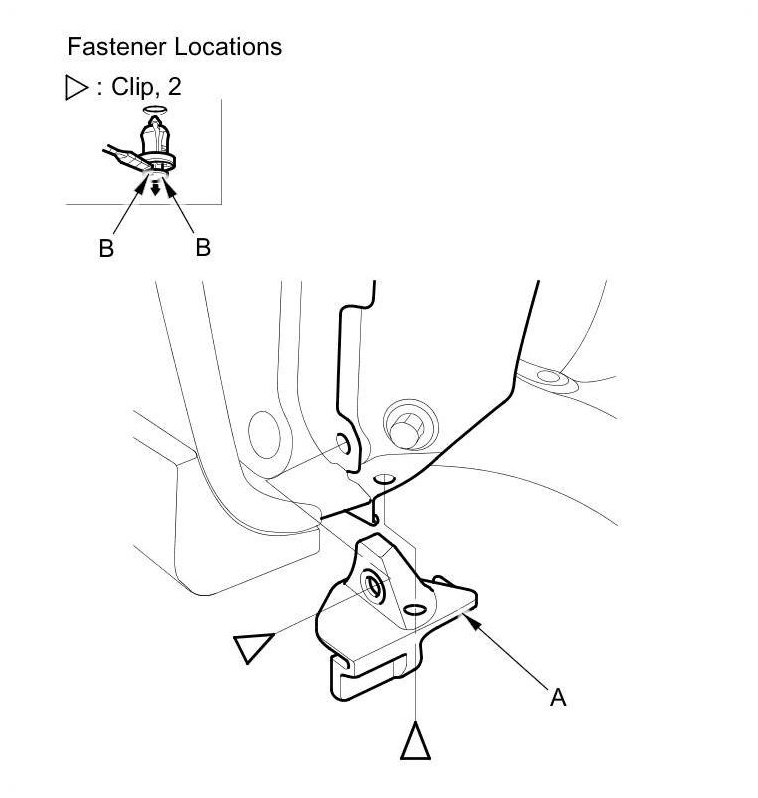

1. Remove the clips, then remove the rear strake (A) from the body.

NOTE: To release the clips, pry up on the center pin at the notch (B).





2. Install the strake in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
