Blower Motor Switch: Testing and Inspection

Heater Fan Switch Test

1. Remove the heater control panel Heater Control Panel Removal/Installation.

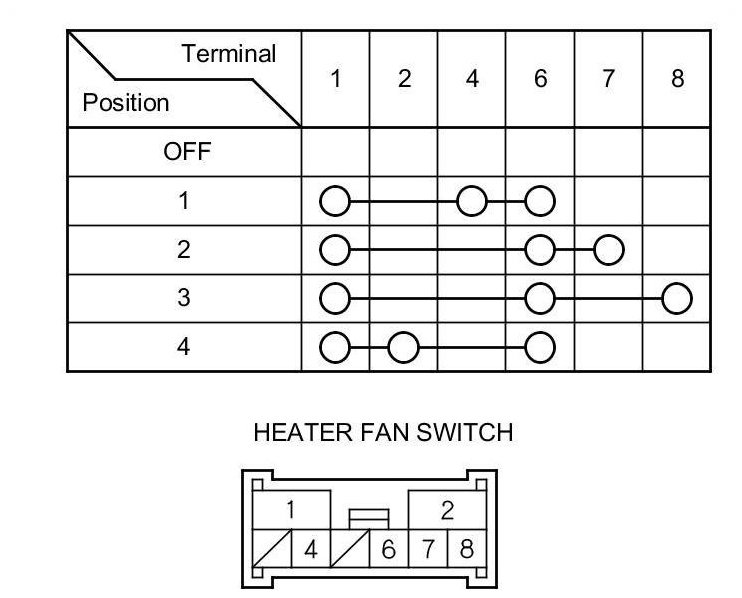

2. Check for continuity between the terminals in each switch position according to the table.





3. If the continuity is not as specified, replace the heater fan switch Overhaul.
