EGR Valve: Service and Repair

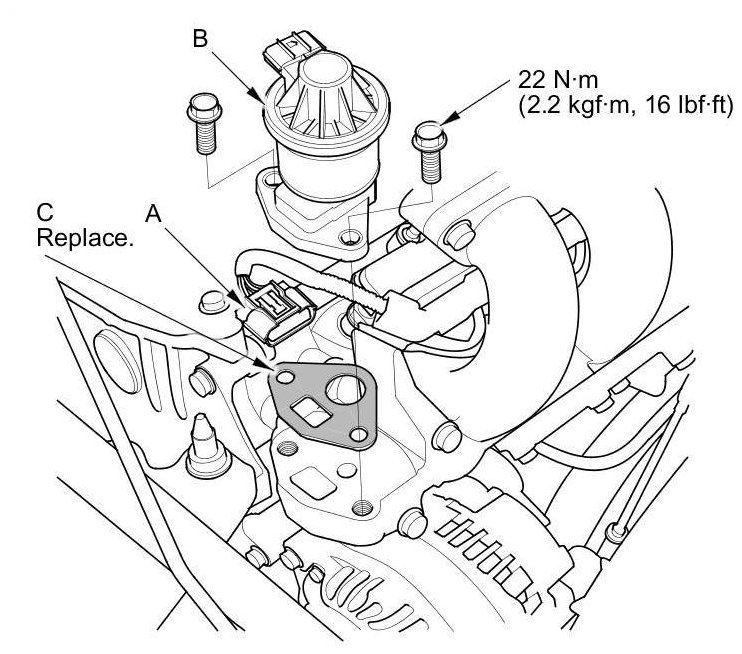

EGR Valve Replacement

1. Disconnect the EGR valve connector (A).





2. Remove the EGR valve (B).

3. Install the parts in the reverse order of removal with a new gasket (C).
