Clutch Interlock Switch Replacement

Clutch Interlock Switch Replacement

M/T model

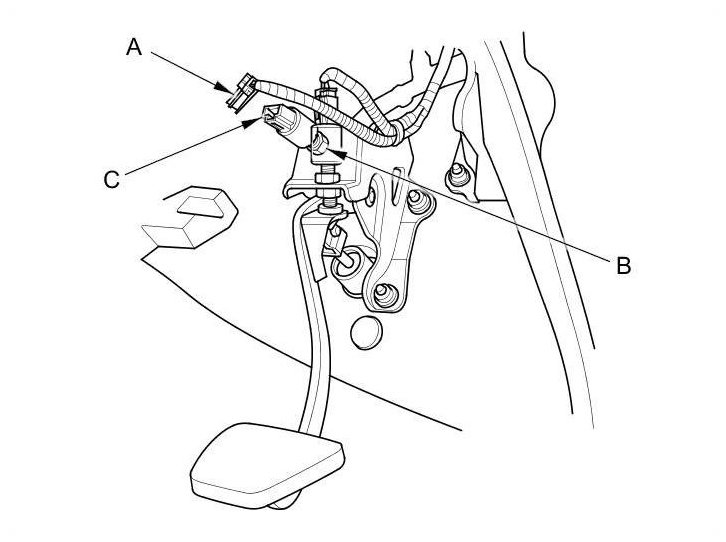

1. Disconnect the 2P connector (A) from the clutch interlock switch.





2. Loosen the locknut (B), then remove the clutch interlock switch (C).

3. Install the clutch interlock switch and adjust the pedal height Adjustments.
