Clutch Interlock Switch Test

Clutch Interlock Switch Test

M/T model

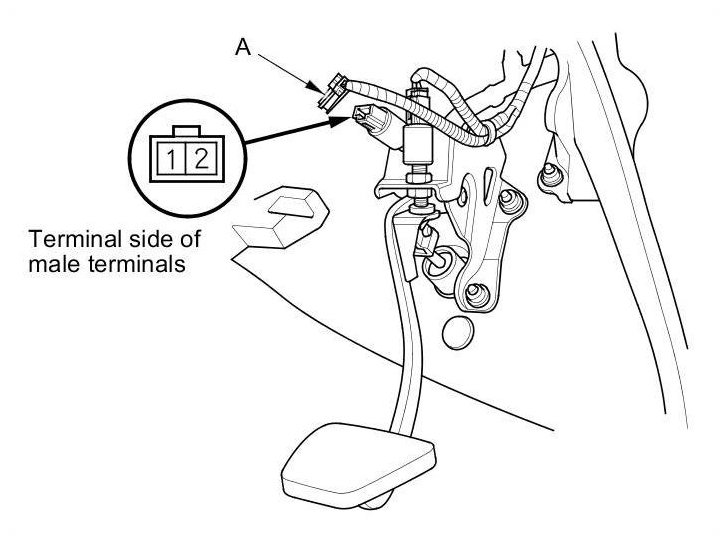

1. Disconnect the 2P connector (A) from the clutch interlock switch.

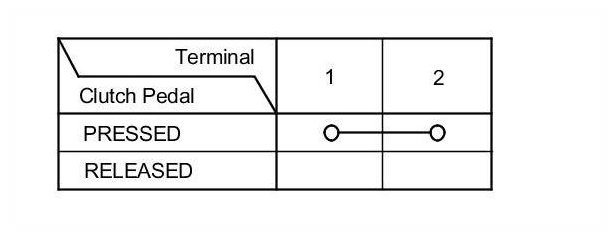

2. Check for continuity between the terminals according to the table:

- If the continuity is not as specified, replace the clutch interlock switch Clutch Interlock Switch Replacement, and adjust the pedal height Adjustments.
- If OK, connect the clutch interlock switch 2P connector.
