Transmission Speed Sensor: Service and Repair

Input Shaft (Mainshaft) Speed Sensor Replacement

1. Remove the air cleaner assembly Service and Repair.

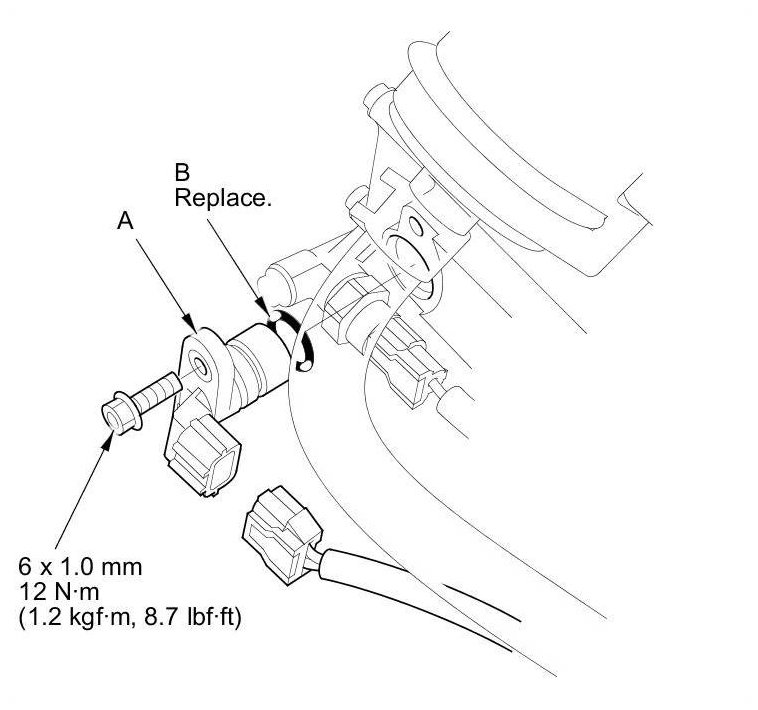

2. Disconnect the input shaft (mainshaft) speed sensor connector, and remove the input shaft (mainshaft) speed sensor (A).





3. Install a new O-ring (B) on the new input shaft (mainshaft) speed sensor, then install the input shaft (mainshaft) speed sensor.

4. Check the connector for rust, dirt, or oil, then connect the connector securely.

5. Install the air cleaner assembly Service and Repair.
