Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ), before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Disconnect the 20P connector (A) from the cable reel.
   Fig 1: Identifying 20P Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each cruise control combination switch position according to the table:
   • If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the cruise control combination switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).

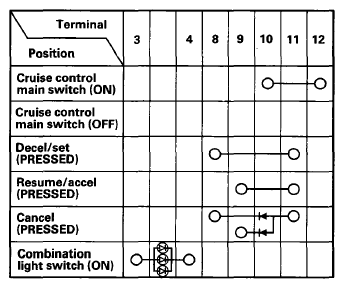

     Fig 2: Cruise Control Connector Continuity Chart

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the parts in the reverse order of removal.

INTEGRATED MOTOR ASSIST (IMA) SYSTEM (If engine maintenance is required)

IMA components are located in this area. The IMA is a high-voltage system. The high voltage cables and their covers are identified by orange coloring. The safety labels are attached to high voltage and other related parts (see DANGER/WARNING/CAUTION LABEL LOCATIONS ). You must be familiar with the IMA system before working around it. Make sure you have read the Service Precautions in the IMA article before doing repairs or service (see SERVICE PRECAUTIONS ).
