Trailing Arm Brace Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body or the related parts.
  1. Remove the middle floor undercover (see MIDDLE FLOOR UNDERCOVER REPLACEMENT ).
  2. Remove the bolts (A, B) and the nuts, then remove the trailing arm braces (C) from the body.

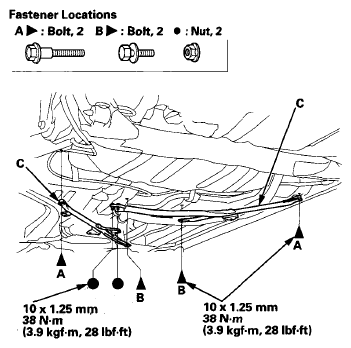

    Fig 1: Trailing Arm Braces Bolts And Nuts With Torque Specifications
    G08094264Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the trailing arm brace in the reverse order of removal.
