Power Mirror Switch Test/Replacement

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Disconnect the 13P connector from the power mirror switch (A).

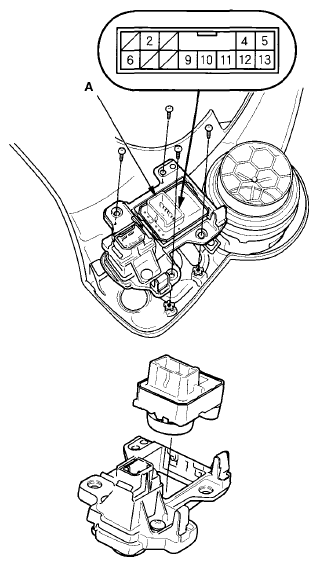

Fig 1: Identifying Power Mirror Switch 13P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.
Power Mirror Switch

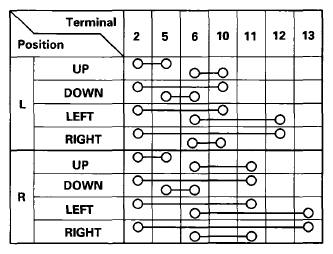

Fig 2: Power Mirror Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the screws and the covers and replacement the switch.
Install in the reverse order of removal.
