Hatch Weatherstrip Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hatch weatherstrip (A) by pulling out on it.

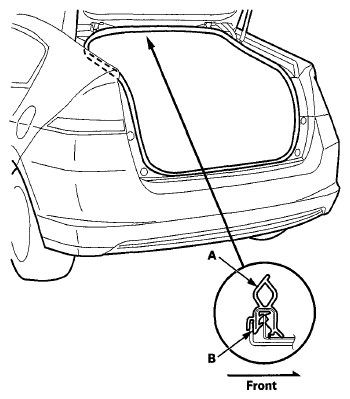

Fig 1: Identifying Hatch Weatherstrip And Painted Alignment Mark
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Locate the painted alignment mark (B) on the hatch weatherstrip. Align the painted mark with the alignment tab in the center of the hatch opening, and install the weatherstrip. Make sure it's seated completely and facing in the direction shown. Make sure there are no wrinkles in the weatherstrip.
Check for water leaks (see step 8 DOOR GLASS ADJUSTMENT ).
