With navigation (Audio-navigation unit)

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

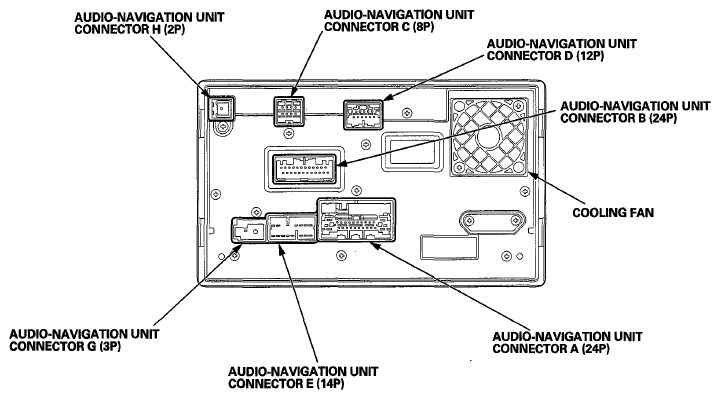

Fig 1: Identifying Audio Unit Inputs And Outputs Connector Location (With Navigation)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Refer to the navigation section for audio-navigation unit connector C, D, and H input and outputs (see NAVIGATION UNIT CONNECTORS ).
