Except DX Model
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

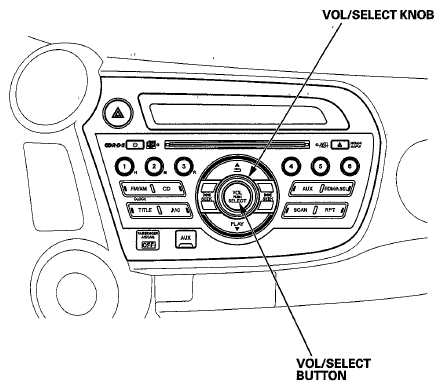

- When you push the VOL/SELECT button, the mode changes to the SELECT mode. When you are in the SELECT mode, use the following buttons to navigate through the various audio inputs.RADIO REFERENCE CHART
BUTTON RADIO CD-DA CD (MP3/WMA) USB iPod VOL/SELECT KNOB TUNE TRACK selection FOLDER selection FILE selection Music retrieval(1) VOL/SELECT BUTTON Receiving station dicision Start playing the selected track When a FOLDER is selected, you move down to the next level. When a music file is selected, the file begins playing. When a FOLDER is selected, you move down to the next level. When a music file is selected, the file begins playing. ↑ Exit SELECT mode Exit SELECT mode Returns to the previous level(2) Returns to the previous level(2) ↓ Exit SELECT mode Start playing the selected track FOLDER/FILE selection and play(3) PLAY MODE selection and play(4) (1) There are four basic play modes (PLAYLISTS/ARTISTS/ALBUMS/SONGS) and the layered structure under applies to the specification for the iPod. (2) When in the top hierarchy, exit SELECT mode. (3) When ↑ is pressed with FOLDER selected, it begins playing the first music file in the FOLDER. (4) When ↓ is pressed with PLAYLIST/ARTIST/ALBUM selected, it begins playing the first music in the selected category. - When any other button is pressed, the SELECT mode is canceled, and the audio unit changes per the button pressed.
- When you are in the SELECT mode, the selected radio station or music file continues playing until you select a new input or file (for example, you can listen to the radio until you find the song you wish to play on the CD).
