Humidity/In-Car Temperature Sensor Replacement

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the humidity/in-car temperature sensor trim (A) (see HUMIDITY/IN-CAR TEMPERATURE SENSOR TRIM REMOVAL/INSTALLATION ).

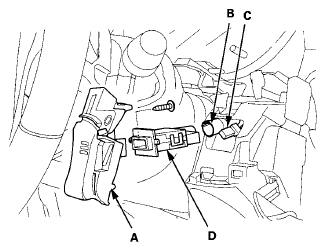

    Fig 1: Identifying Humidity/In-Car Temperature Sensor Trim, Aspirator Air Hose And Connector
    G08094436Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the aspirator air hose (B), and disconnect the connector (C).
  4. Remove the self-tapping screw and the humidity/in-car temperature sensor (D) from the humidity/in-car temperature sensor trim (A).
  5. Install the sensor in the reverse order of removal. Be sure to connect the aspirator air hose securely.
