ODS Unit Replacement: Installation

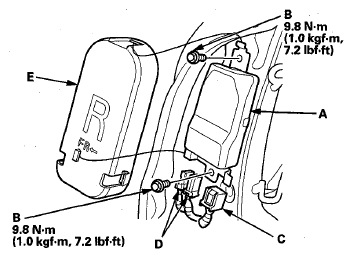

- Place the ODS unit (A) on the seat-back frame. Install the two bolts (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Connect the ODS unit harness 18P connector (C) and OPDS sensor connectors (D) to the ODS unit. Reinstall the cover (E).
- Reinstall the seat-back cover/pad in the reverse order of removal.
- Install the front passenger's seat (see
FRONT SEAT ACTIVE HEAD RESTRAINT INSPECTION
).
- Do the 12 volt battery terminal reconnection procedure (see
RECONNECTION
).
- Set the seat-back in the normal position, and make sure there is nothing on the front passenger's seat.
- Clear any DTCs with the HDS (see HOW TO CLEAR DTCS ).
- Do the ODS unit initialization (see ODS UNIT INITIALIZATION ).
- Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
