VSA Modulator-Control Unit Removal and Installation: Removal

Turn the ignition switch to LOCK (0).
Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).

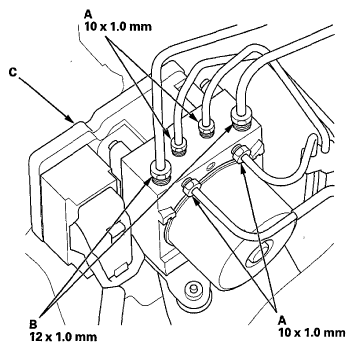

Disconnect the 10 mm brake lines (A) and the 12 mm brake lines (B) from the VSA modulator-control unit

Fig 1: Identifying VSA Modulator-Control Unit And Brake Lines
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the VSA modulator-control unit 32P connector (A) by pushing the lock (B) and pulling up the lever (C); the connector disconnects itself.

Fig 2: Pushing VSA Modulator-Control Unit 32P Connector Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.

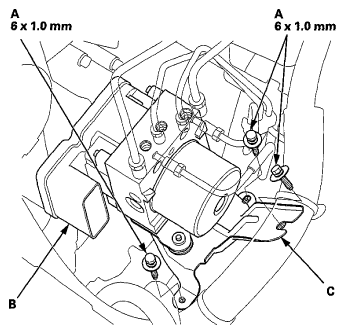

Remove the VSA modulator-control unit bracket mounting bolts (A), then remove the VSA modulator-control unit (B) with the bracket (C) from the body.

Fig 3: Identifying VSA Modulator-Control Unit, Brackets And Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

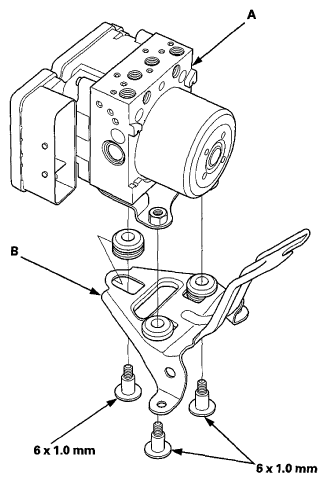

Remove the VSA modulator-control unit (A) from the bracket (B).

Fig 4: Identifying VSA Modulator-Control Unit With Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
