Under Hood Fuse/Relay Box (Relay Control Module Part)

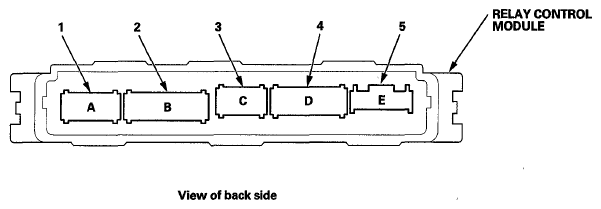

Fig 1: Identifying Relay Control Module Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

UNDER HOOD FUSE/RELAY BOX CONNECTOR TERMINALS CHART

Socket	Ref	Terminals	Connects to	Notes
A	1	--	Not used
B	2	16	Right engine compartment wire harness (engine compartment branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) )
C	3	8	Right engine compartment wire harness (engine compartment branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) )
D	4	14	Right engine compartment wire harness (engine compartment branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) )
E	5	4	Right engine compartment wire harness (engine compartment branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) )
