Rocker Arm Oil Pressure Sensor Replacement

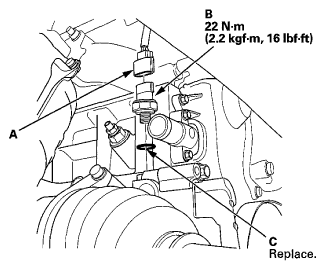

- Disconnect the rocker arm oil pressure sensor connector (A), then remove the rocker arm oil pressure sensor (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove all the old liquid gasket from the rocker arm oil pressure senor mounting hole.
- Clean and dry the rocker arm oil pressure sensor mounting hole.
- Apply liquid gasket (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009) to the rocker arm oil pressure sensor threads. Install the component within 5 minutes of applying the liquid gasket.
NOTE:
- Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the rocker arm oil pressure sensor.
- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
- Install the new rocker arm oil pressure sensor with a new O-ring (C).
- Connect the rocker arm oil pressure sensor connector.
