Rear Rocker Arm Oil Pressure Switch Removal/Installation

  1. Disconnect the rear rocker arm oil pressure switch 1P connector (A).

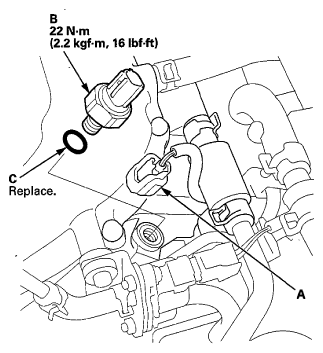

    Fig 1: Rear Rocker Arm Oil Pressure Switch And 1P Connector And O-Ring With Torque Specifications
    G06966624Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the rear rocker arm oil pressure switch (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
