Telematics Switch Module Removal, Installation, and Test: Test
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Telematics Switch Module - Test

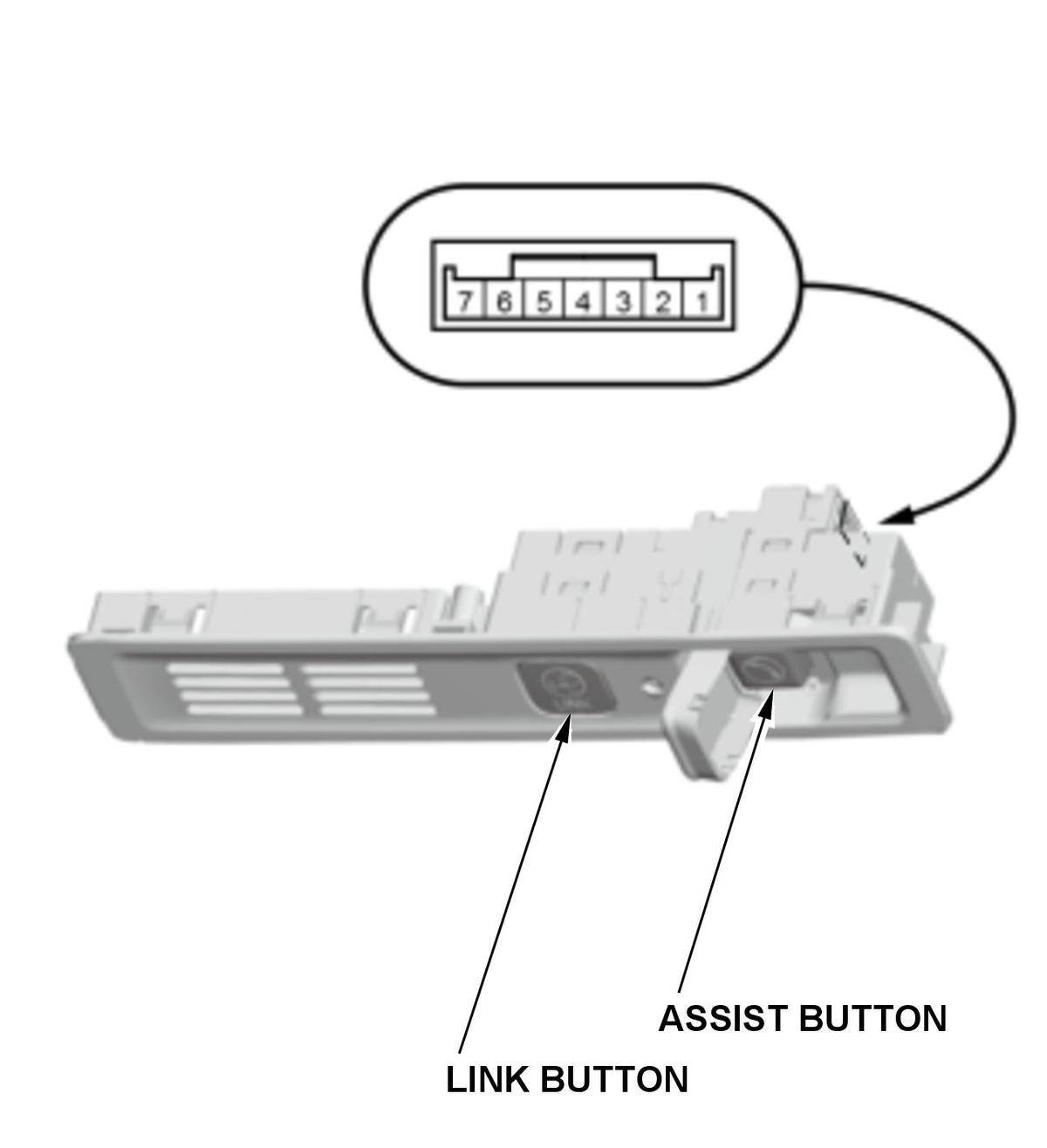

1. Measure the resistance between terminals No. 1 and No. 2 in each switch position according to the table in illustration. 2. If the resistance is not as specified, replace the telematics switch module.
Button Held Down Resistance No button pressed About 3.1 kΩ LINK About 400 Ω ASSIST About 100 Ω
