Shift Lock Stop/Shift Lock Stop Cushion Replacement

NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you disassemble or assemble it.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Remove the shift lever knob (see SHIFT LEVER KNOB AND SHIFT LEVER KNOB COVER REPLACEMENT  ).
  3. Remove the A/T gear position indicator panel light socket (A) from the indicator panel (B).

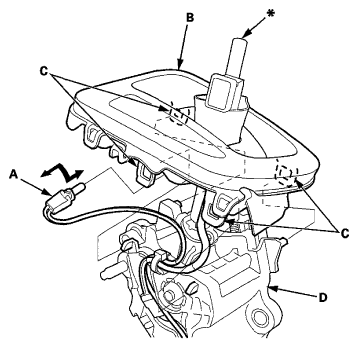

    Fig 1: Removing A/T Gear Position Indicator Panel Light Socket From Indicator Panel
    G06967145Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the A/T gear position indicator panel assembly by expanding the four lock tabs (C) from the shift lever assembly (D).
  5. Remove the harness wire tie (A), and disconnect the D3 switch connector (B).

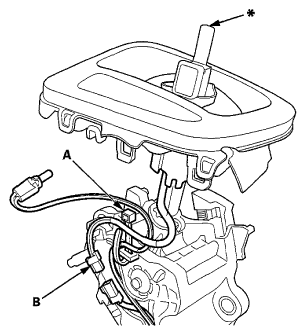

    Fig 2: Identifying Harness Wire Tie And D3 Switch Connector
    G06967146Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the A/T gear position indicator panel assembly (A), the shift lever ring (B), and the D3 switch (C) from the shift lever assembly.

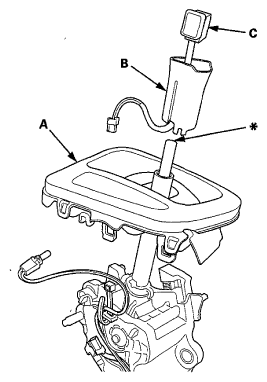

    Fig 3: Identifying A/T Gear Position Indicator Panel Assembly, Shift Lever Ring And D3 Switch
    G06967147Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the shift lock release (A) and release spring (B) by pressing the lock tab (C).
    Fig 4: Identifying Shift Lock Release, Spring And Lock Tab
    G06967148Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. While release the lock tab (A) using a screwdriver, insert a pin (B) into the guide hole (C), and push the shift lock solenoid (D) out.

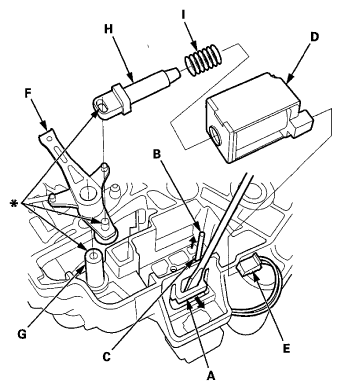

    Fig 5: Identifying Lock Tab, Pin, Guide Hole And Shift Lock Solenoid
    G06967149Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Disconnect the shift lock solenoid connector (E).
  10. Remove the shift lock stop/stop cushion (F).
  11. Replace the shift lock stop/stop cushion.
  12. Install the shift lock stop/stop cushion over the mounting pin (G) on the shift lever assembly.
  13. Connect the shift lock solenoid connector.
  14. Install the shift lock solenoid, the solenoid plunger (H), and the plunger spring (I) assembly.
  15. Install the shift lock solenoid by aligning the joint of the solenoid plunger with the tip of the shift lock stop, then push the shift lock solenoid into the shift lever securely.
  16. Install the shift lock release spring and the shift lock release.
  17. Install the A/T gear position indicator panel assembly (A), the shift lever ring (B), and the D3 switch (C) to the shift lever assembly.

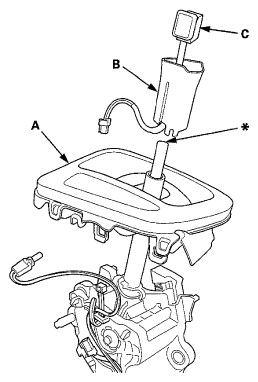

    Fig 6: Identifying A/T Gear Position Indicator Panel Assembly, Shift Lever Ring And D3 Switch
    G06967150Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Connect the D3 switch connector (A). Route the D3 switch harness (B) and the A/T gear position indicator panel light harness (C) along with the shift lever assembly, and tie the harnesses at the guide (D) with the harness wire tie (E)

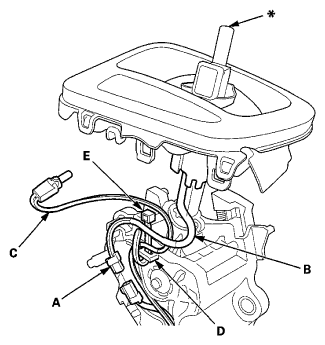

    Fig 7: Identifying D3 Switch Connector, D3 Switch Harness, A/T Gear Position Indicator Panel Light Harness, Guide And Harness Wire Tie
    G06967151Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Install the A/T gear position indicator panel assembly (A) on the shift lever assembly by aligning the four lock tabs (B).

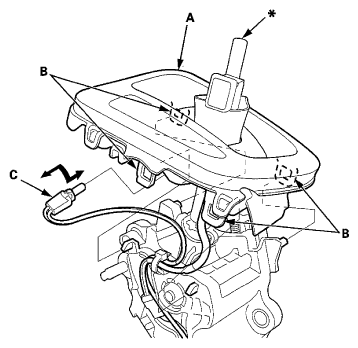

    Fig 8: Identifying A/T Gear Position Indicator Panel Assembly On Shift Lever Assembly
    G06967152Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Install the A/T gear position indicator panel light socket (C) in the indicator panel.
  21. Install the shift lever knob (see SHIFT LEVER KNOB AND SHIFT LEVER KNOB COVER REPLACEMENT  ).
  22. Install the shift lever assembly (see SHIFT LEVER REMOVAL  ).
