Exploded View

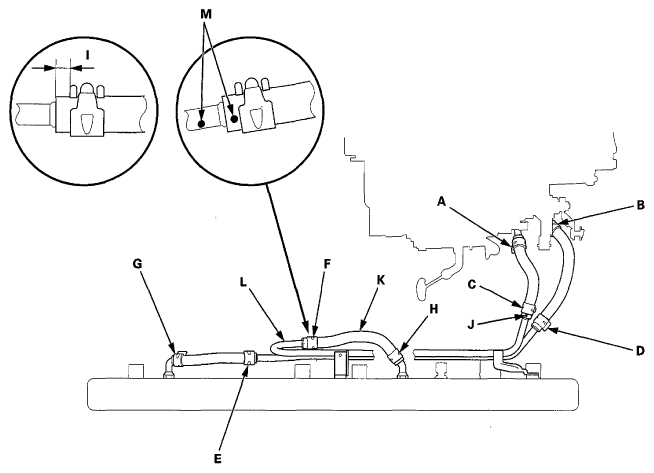

Fig 1: Locating ATF Cooler Hoses And Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the ATF cooler hoses over the ATF cooler lines with the clips at appropriate points in reference to the following list.

NOTE:

Be sure to install the ATF cooler hose with the white paint mark (J) facing up.
Connect the ATF cooler hose (K) to the ATF cooler line (L) by aligning the paint marks (M).

ATF COOLER HOSE DISTANCE REFERENCE

Point	Distance from Hose End to Clip (1)	Hose End Contact Point
A	6-8 mm (0.24-0.31 in)	Bulge
B
C
D
E
F
G	2-4 mm (0.08-0.16 in)	Bulge
H	2-4 mm (0.08-0.16 in)	Bulge
