Lock-Up Control

Shift solenoid valve D controls the hydraulic pressure to switch the lock-up shift valve ON and OFF. When the PCM actuates shift solenoid valve D and A/T clutch pressure control solenoid valve C ON, and lock-up starts. A/T clutch pressure control solenoid valve C applies and regulates hydraulic pressure to the lock-up control valve to control the amount of lock-up. The lock-up mechanism operates in D (2nd, 3rd, 4th, and 5th gears), and D with the D3 driving mode (2nd and 3rd gears).

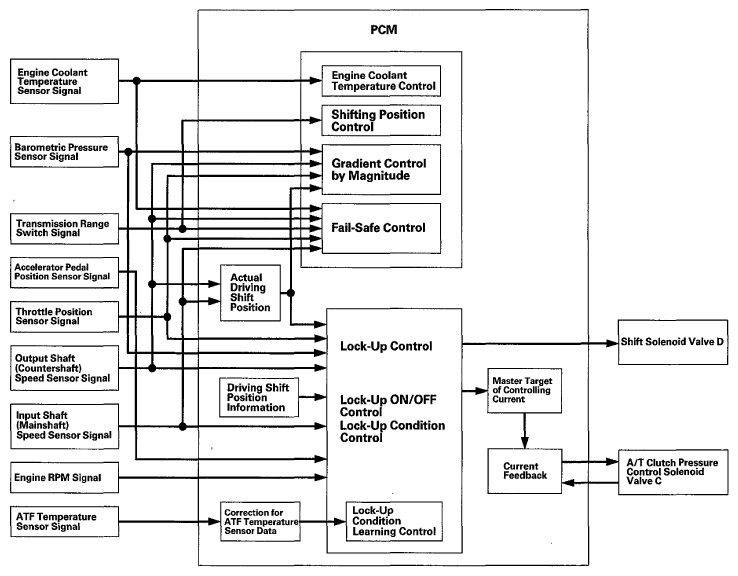

Fig 1: Lock-Up Control - Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
