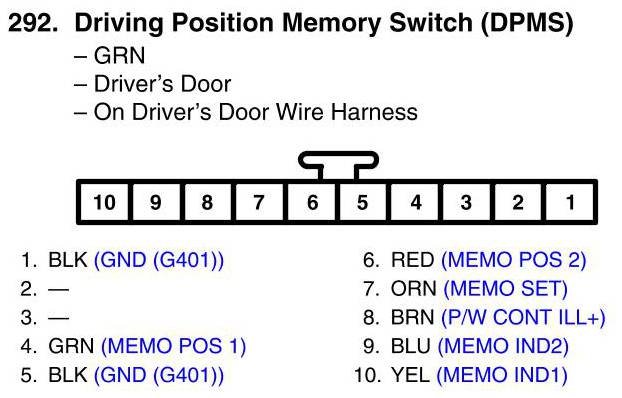

View 292 - Driving Position Memory Switch Connector View (DPMS)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
View 292 - Driving Position Memory Switch Connector View (DPMS)
