Rear A/C Control Unit Connector View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

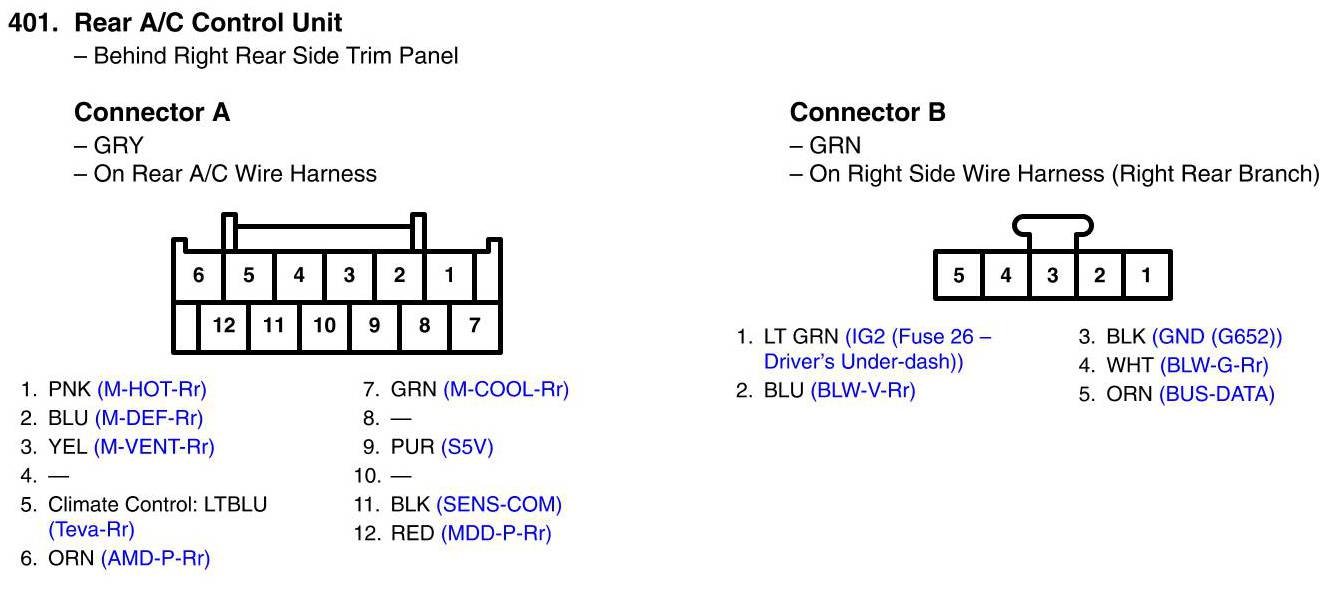

Rear A/C Control Unit Connector View
