Climate Control Unit Removal/Installation (With Climate Control)

Climate Control Unit Removal/Installation

1. Remove the center panel Dashboard Center Panel Removal/Installation.

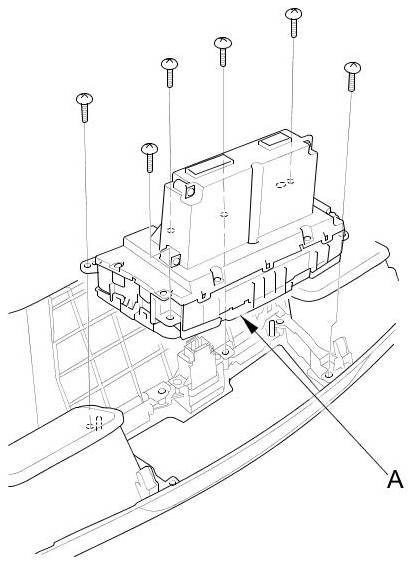

2. Remove the self-tapping screws and the climate control unit (A).





3. Install the control unit in the reverse order of removal. After installation, operate the various functions to see whether it works properly.

4. Run the self-diagnostic function to confirm that there are no problems in the system.
