Connector Locations




Fuse/Relay Box Connector Locations

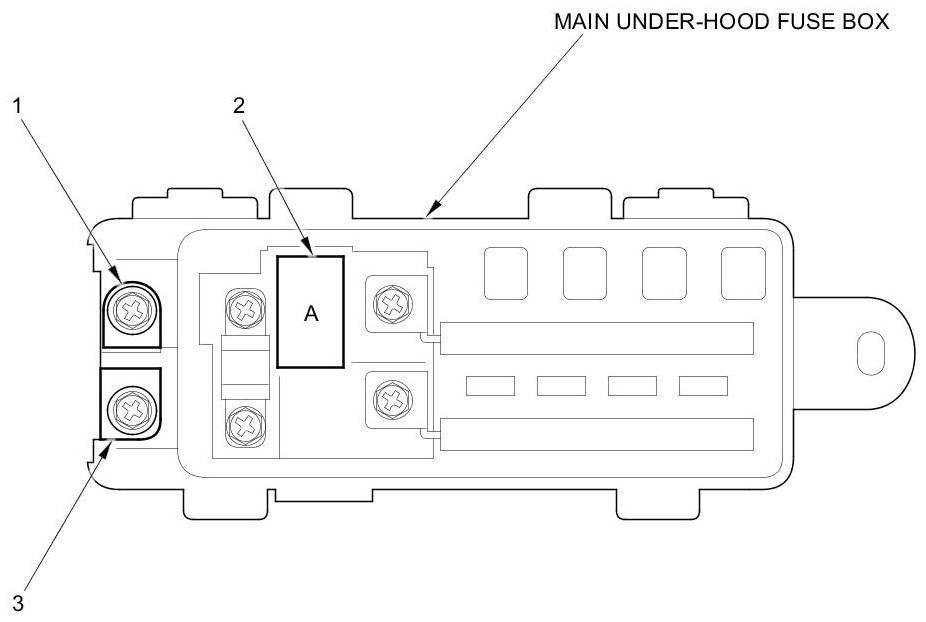

Main Under-Hood Fuse Box

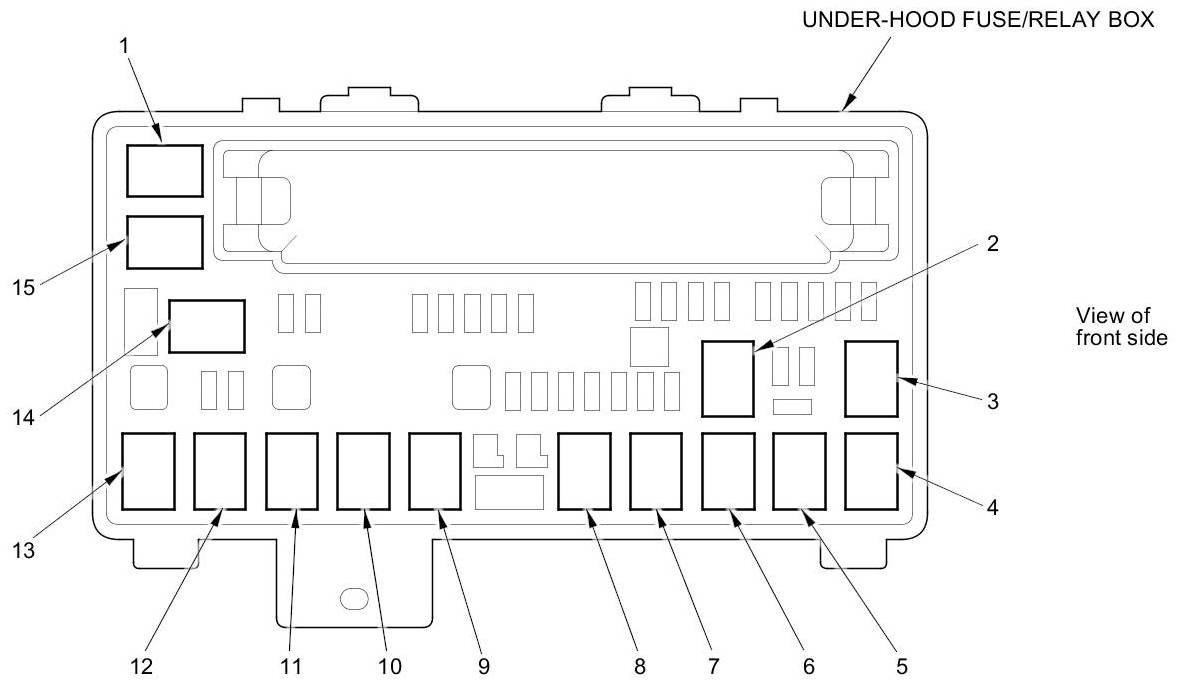

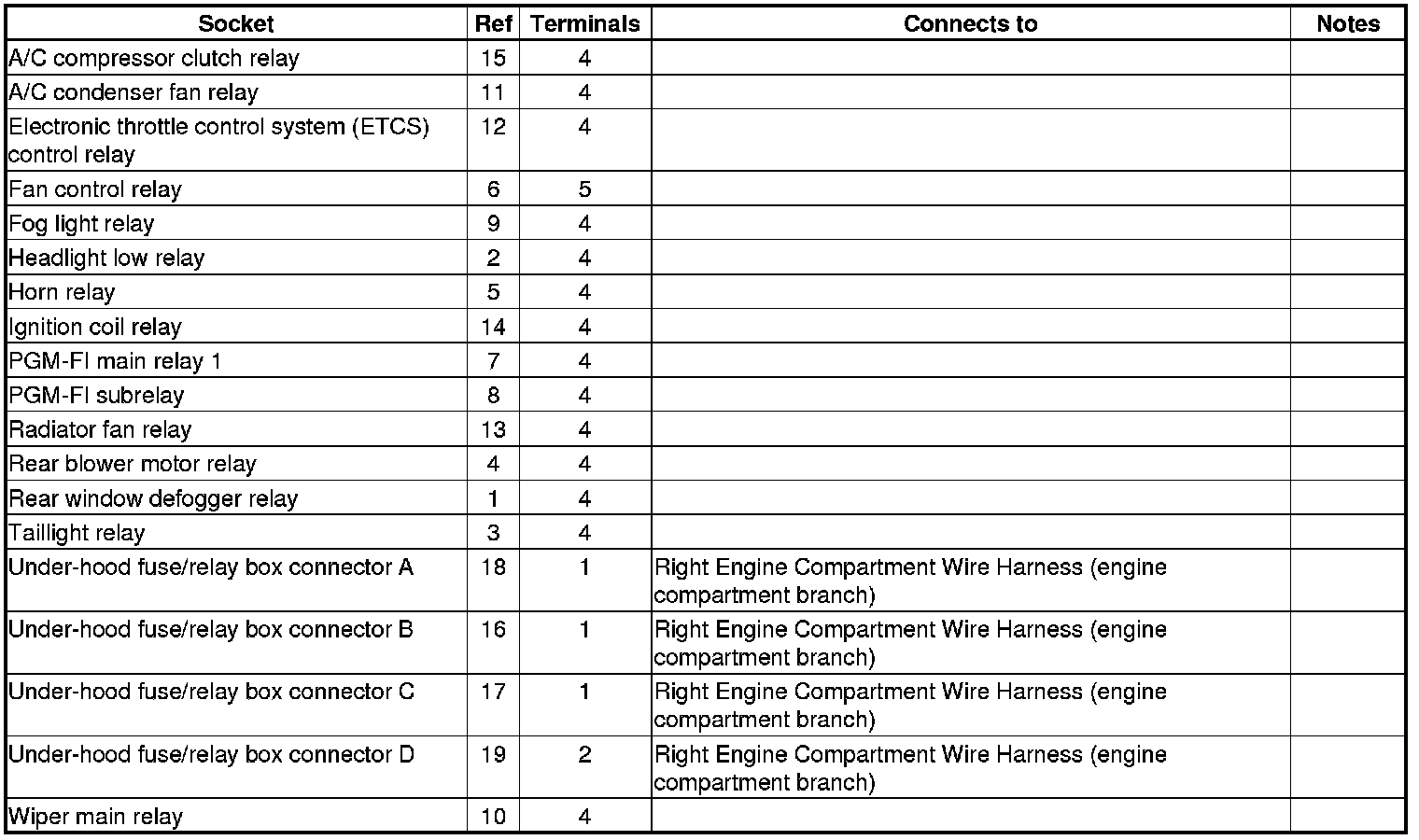

Under-Hood Fuse/Relay Box

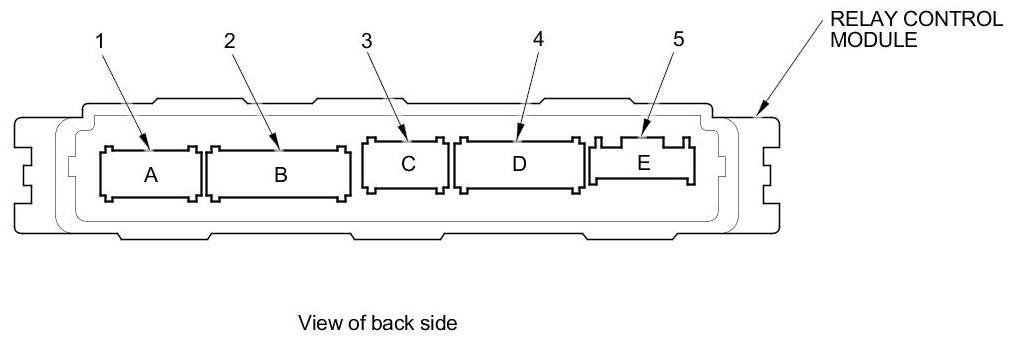

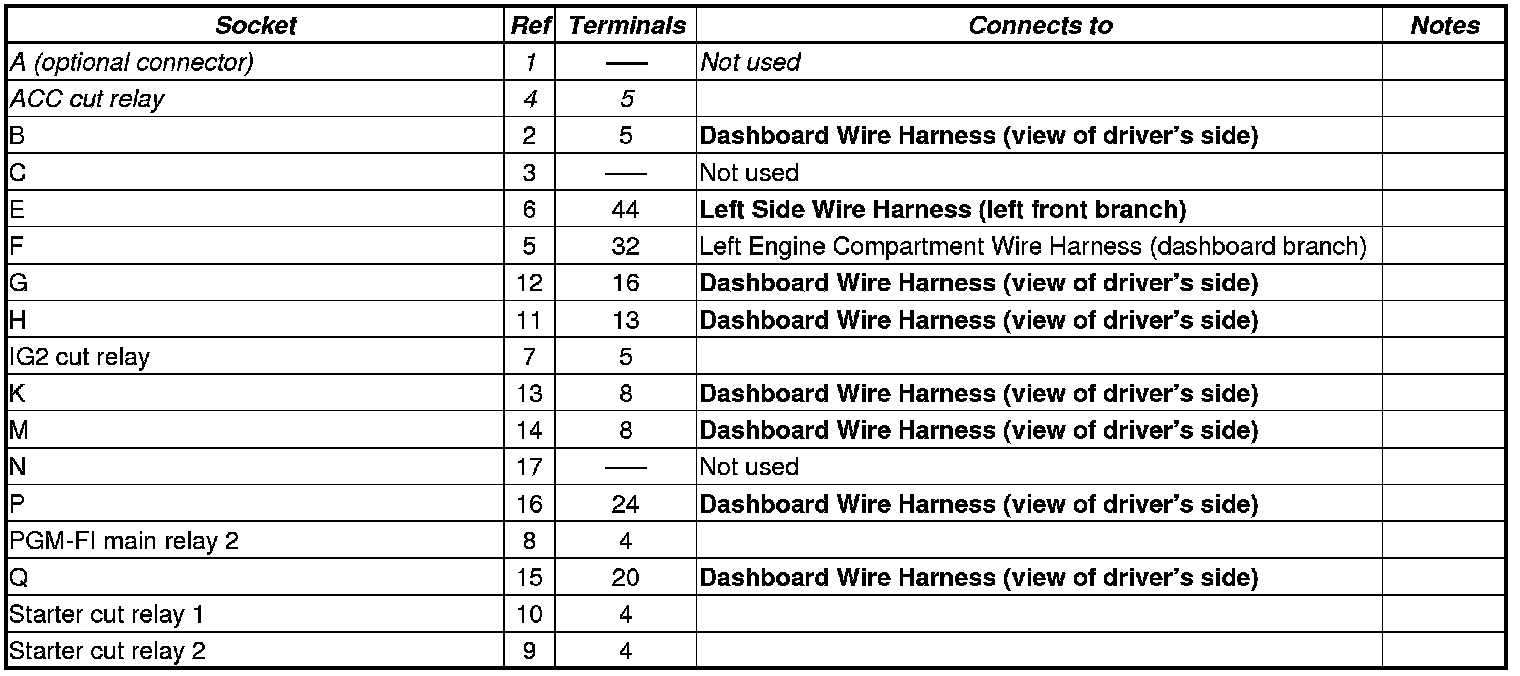

Under-hood Fuse/Relay Box (Relay Control Module Part)

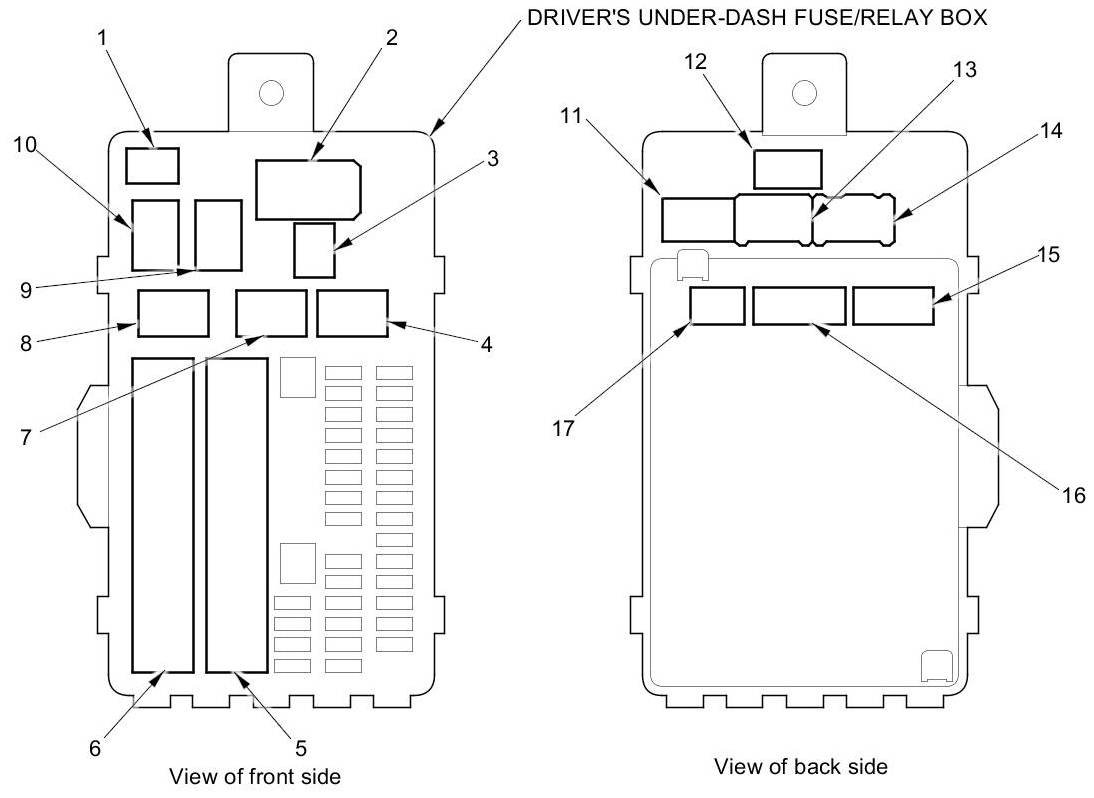

Driver's Under-Dash Fuse/Relay Box

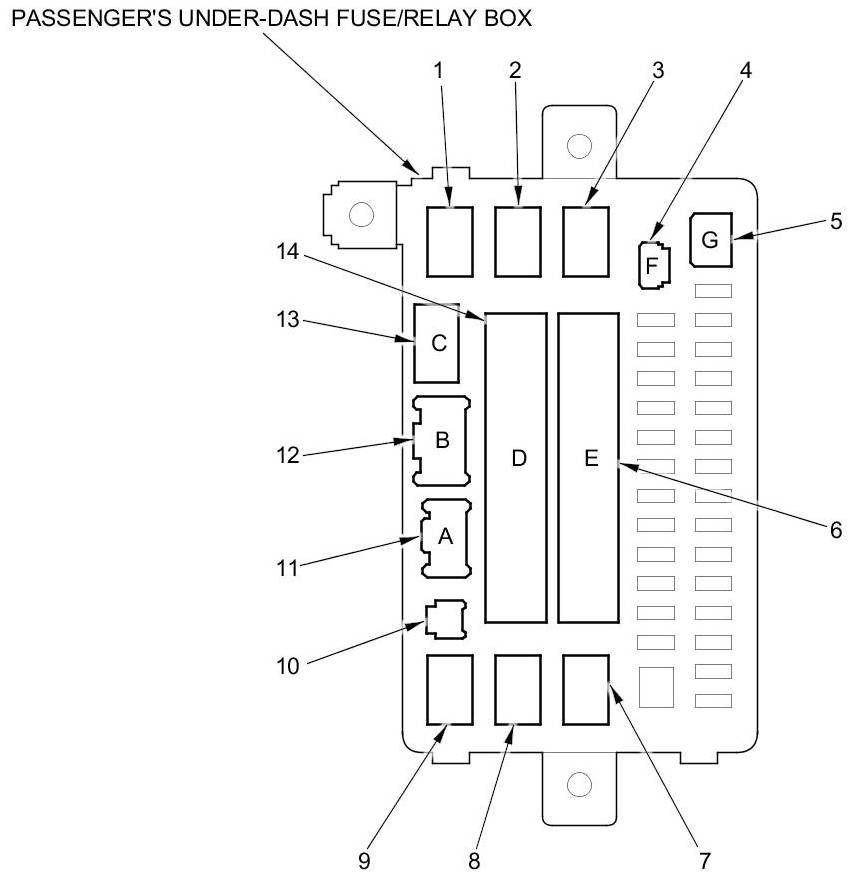

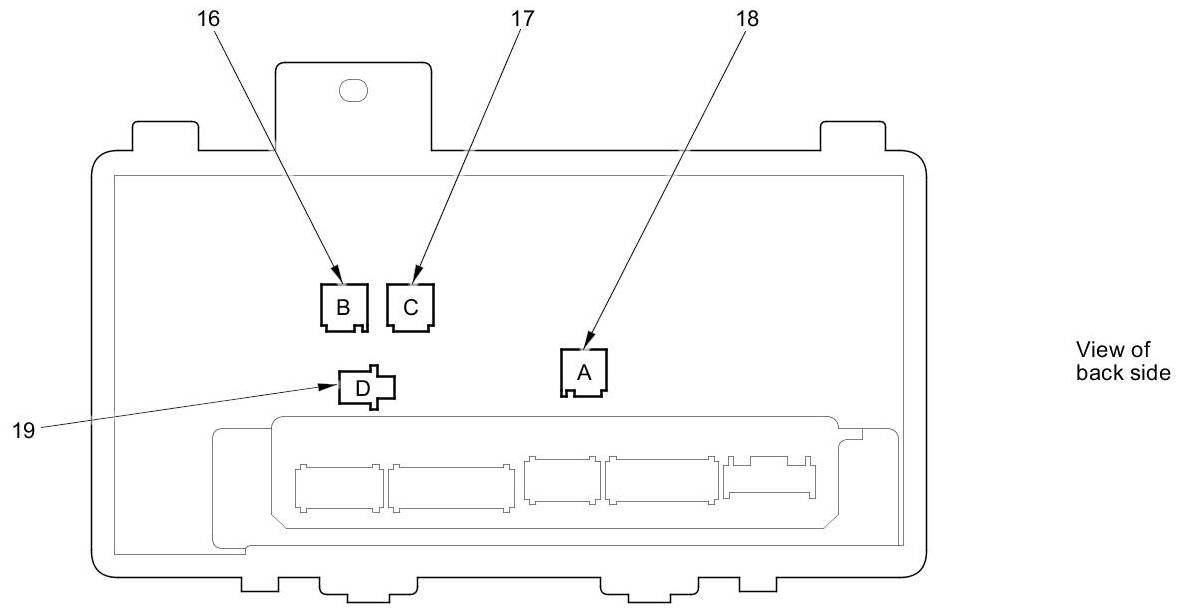

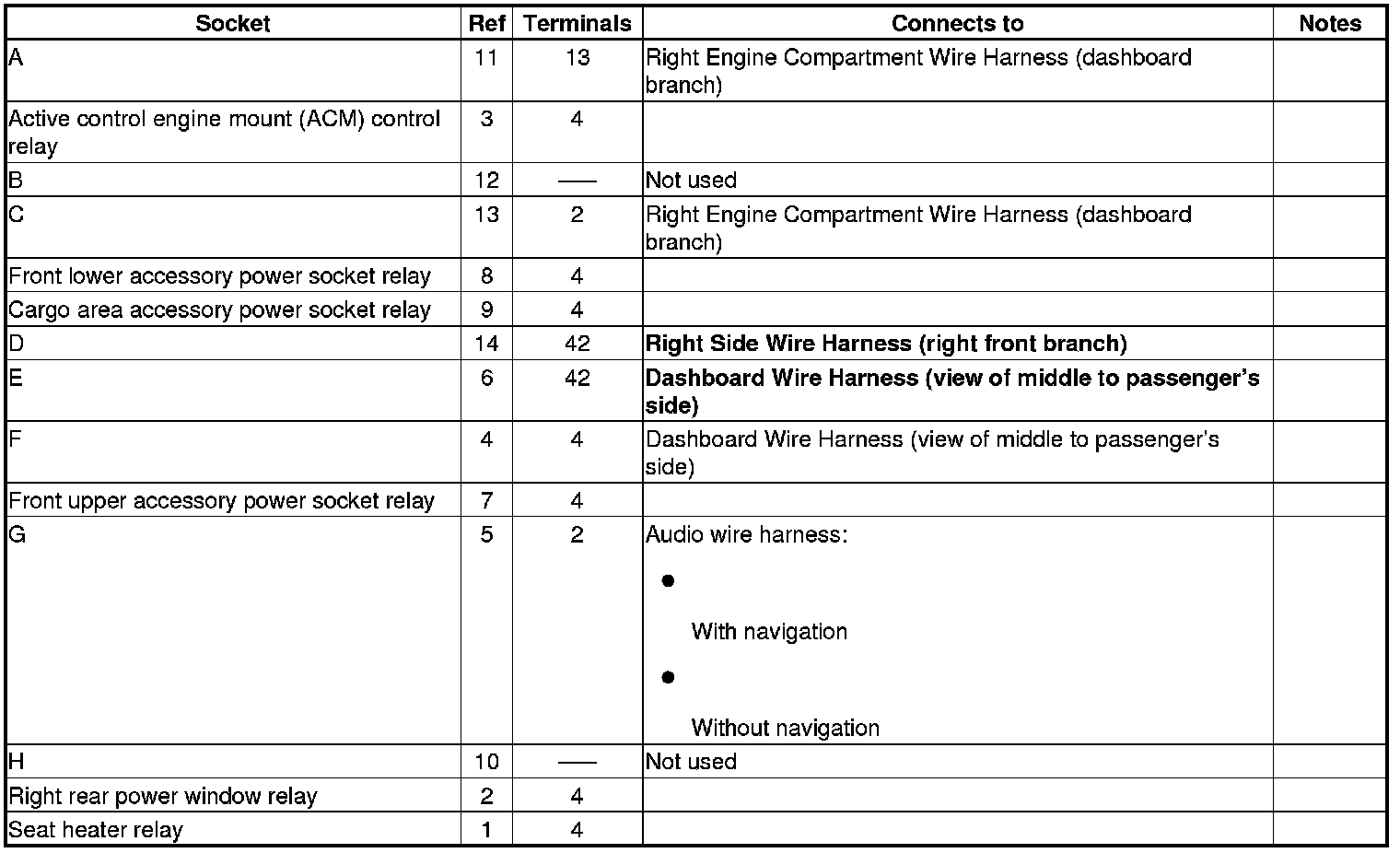

Passenger's Under-Dash Fuse/Relay Box

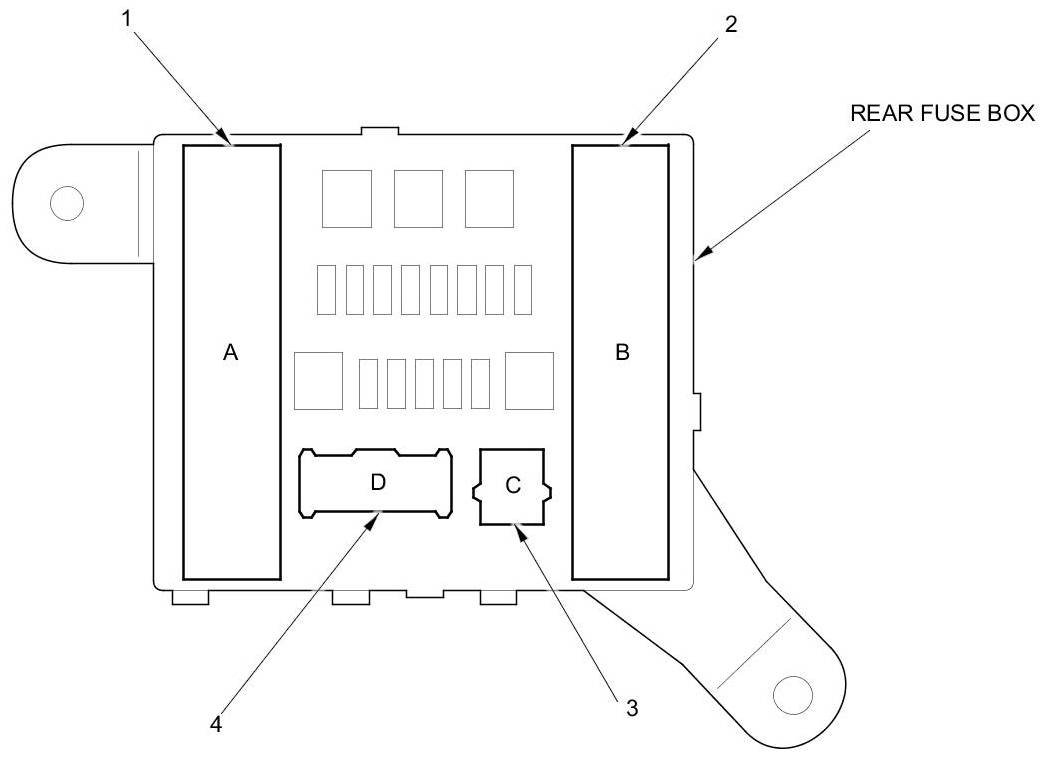

Rear Fuse Box
