Pinout Values and Diagnostic Parameters

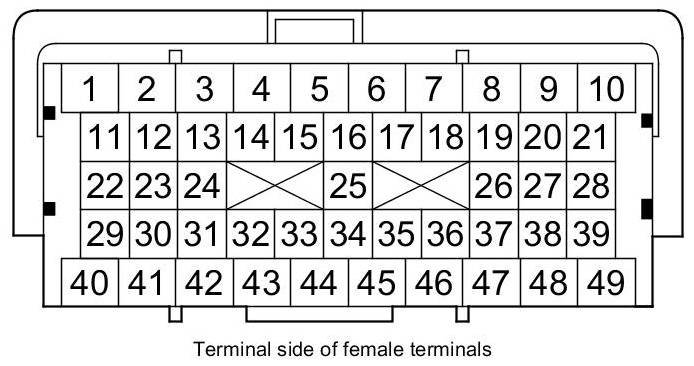

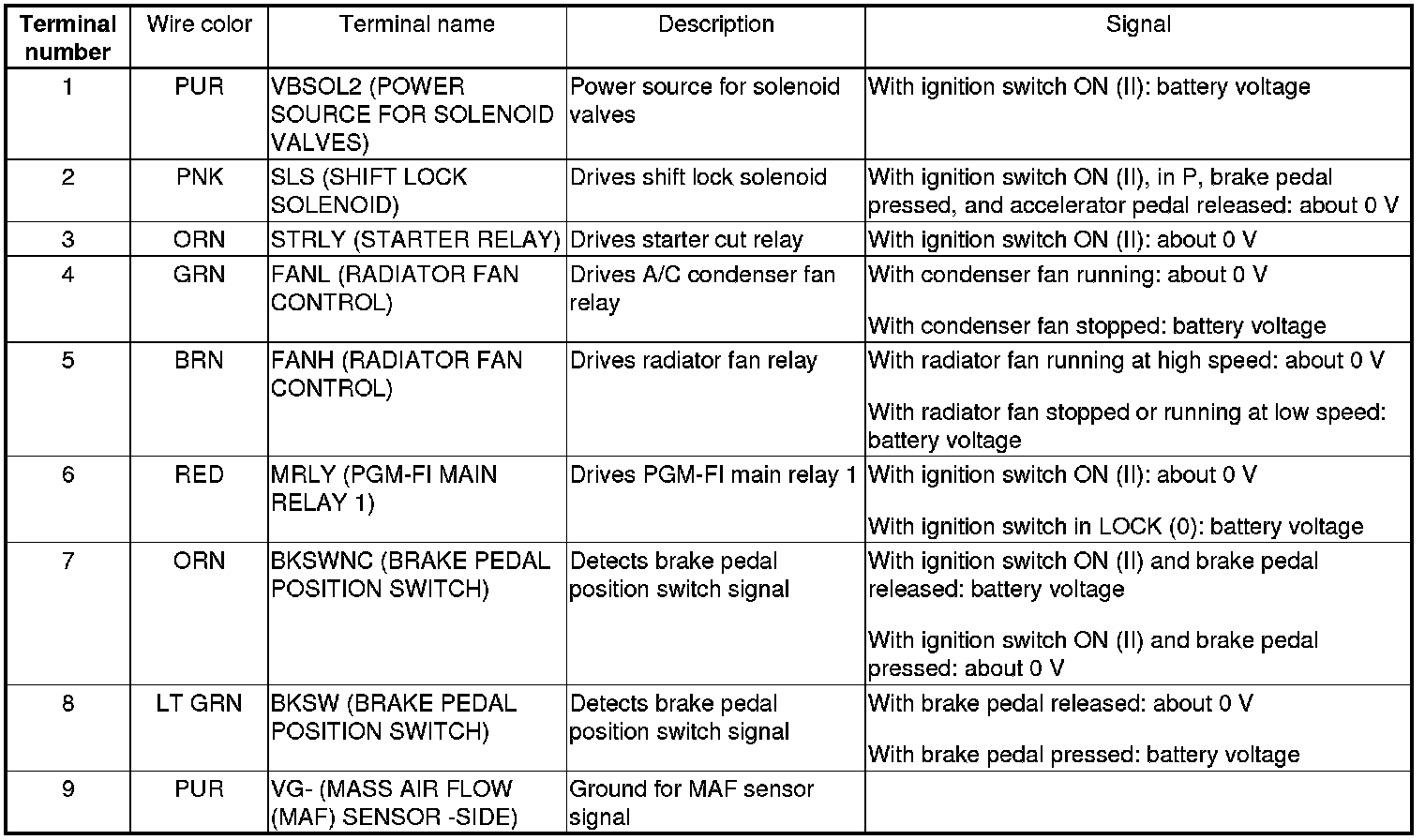

PCM Inputs and Outputs at PCM Connector A (square) (49P)

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the General Troubleshooting Information for more details.

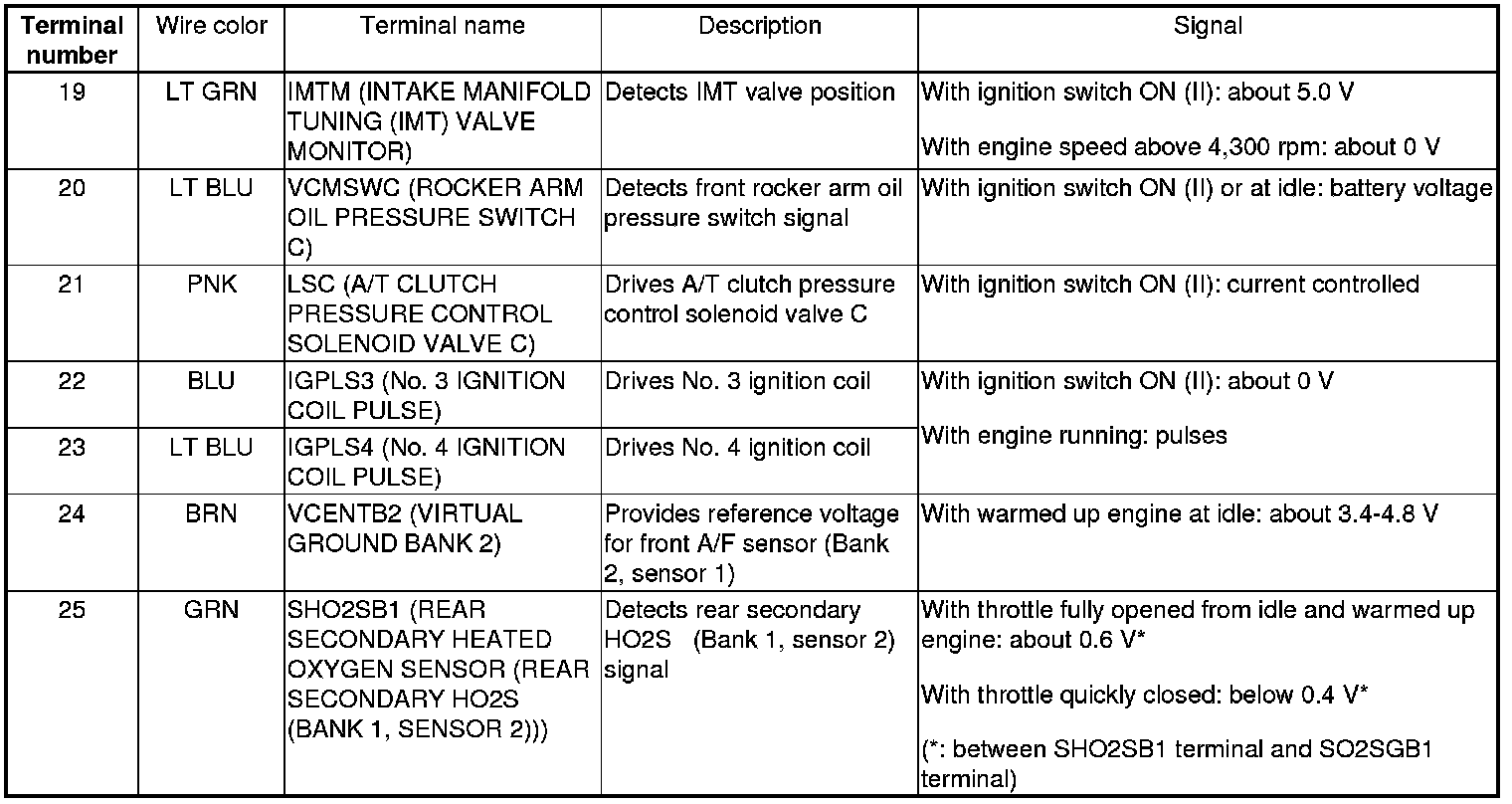

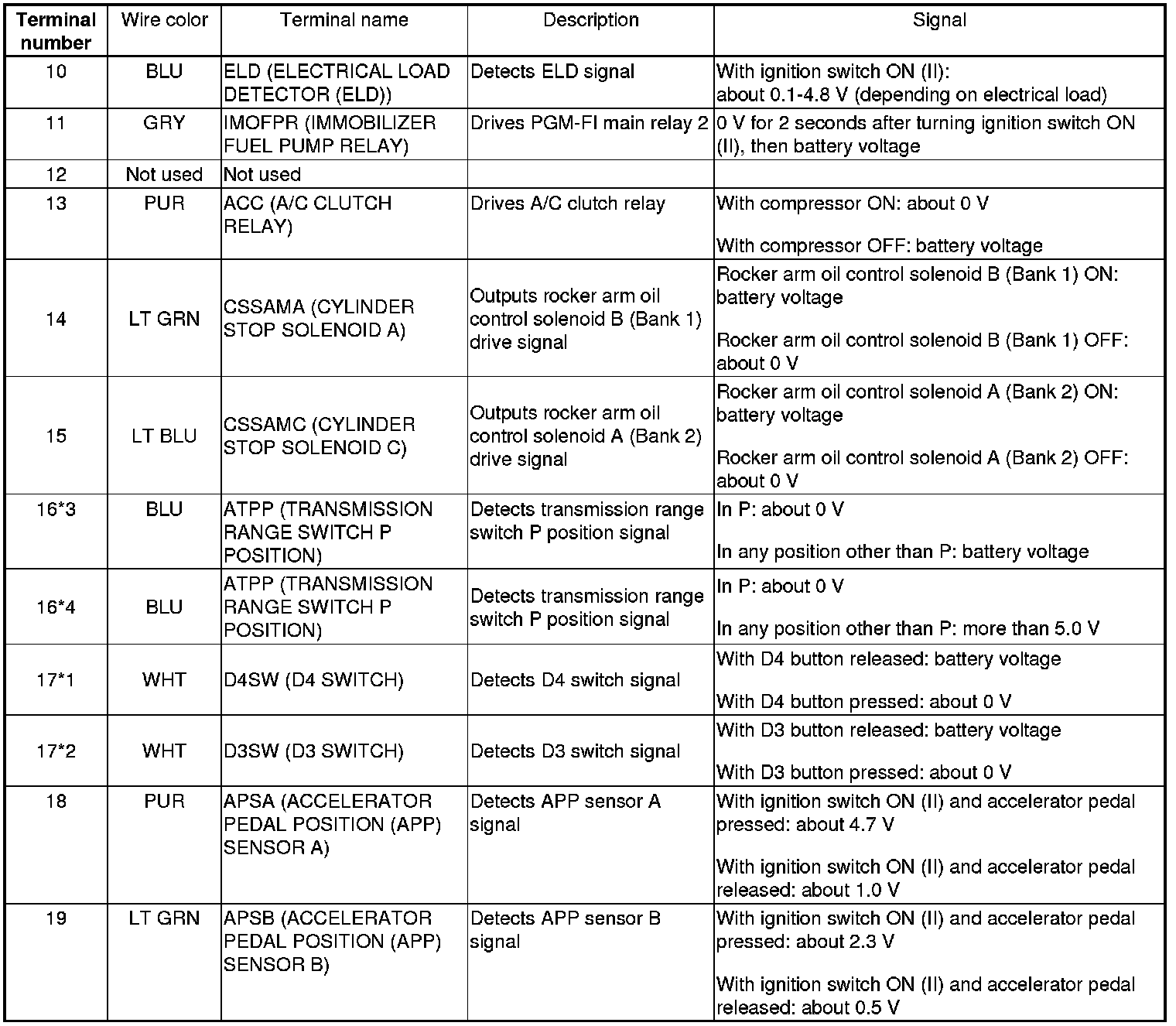

PCM Inputs and Outputs at PCM Connector A (square) (49P)

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the General Troubleshooting Information for more details.

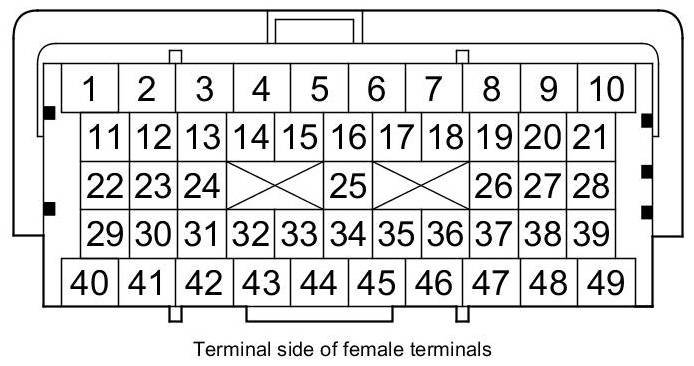

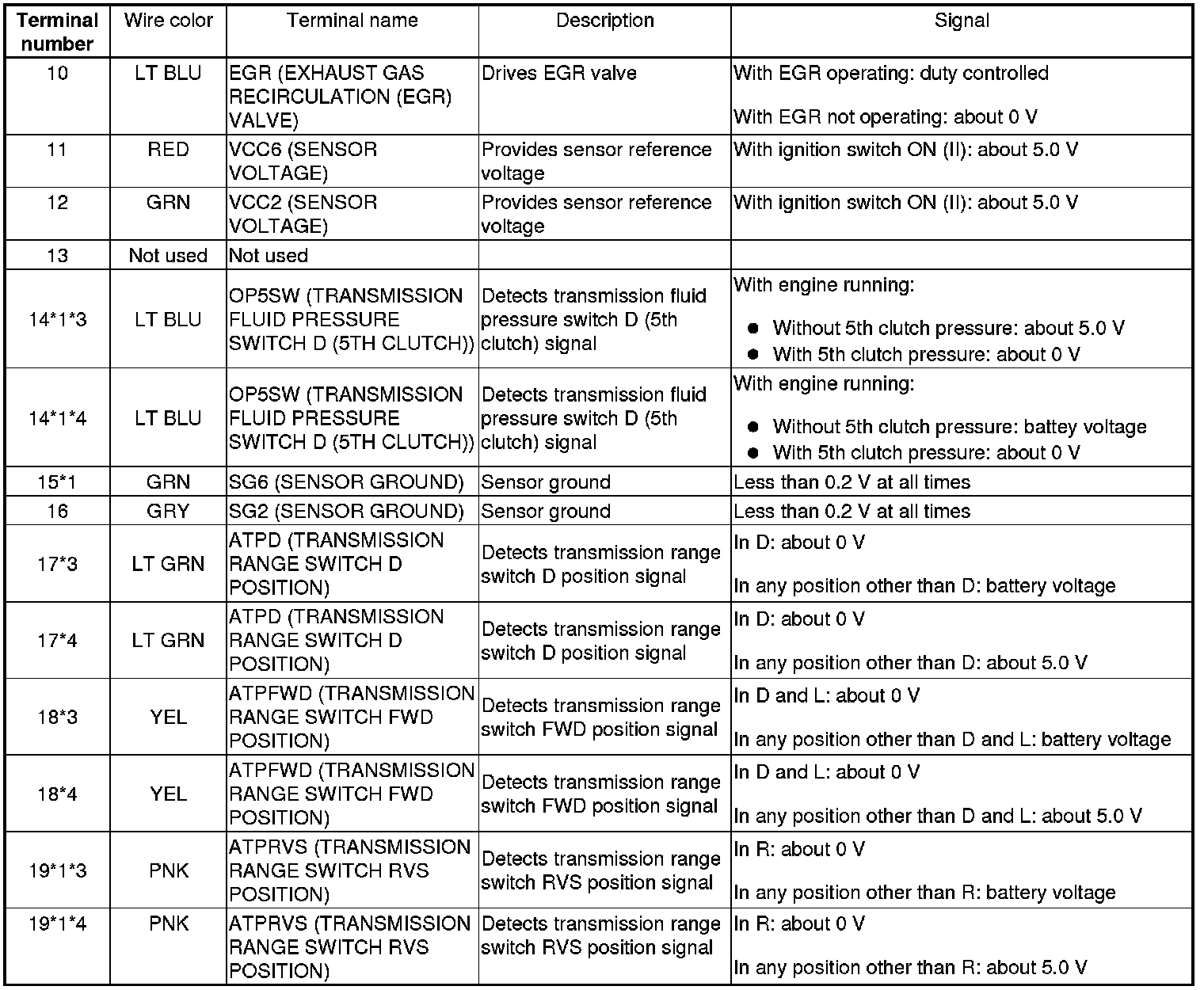

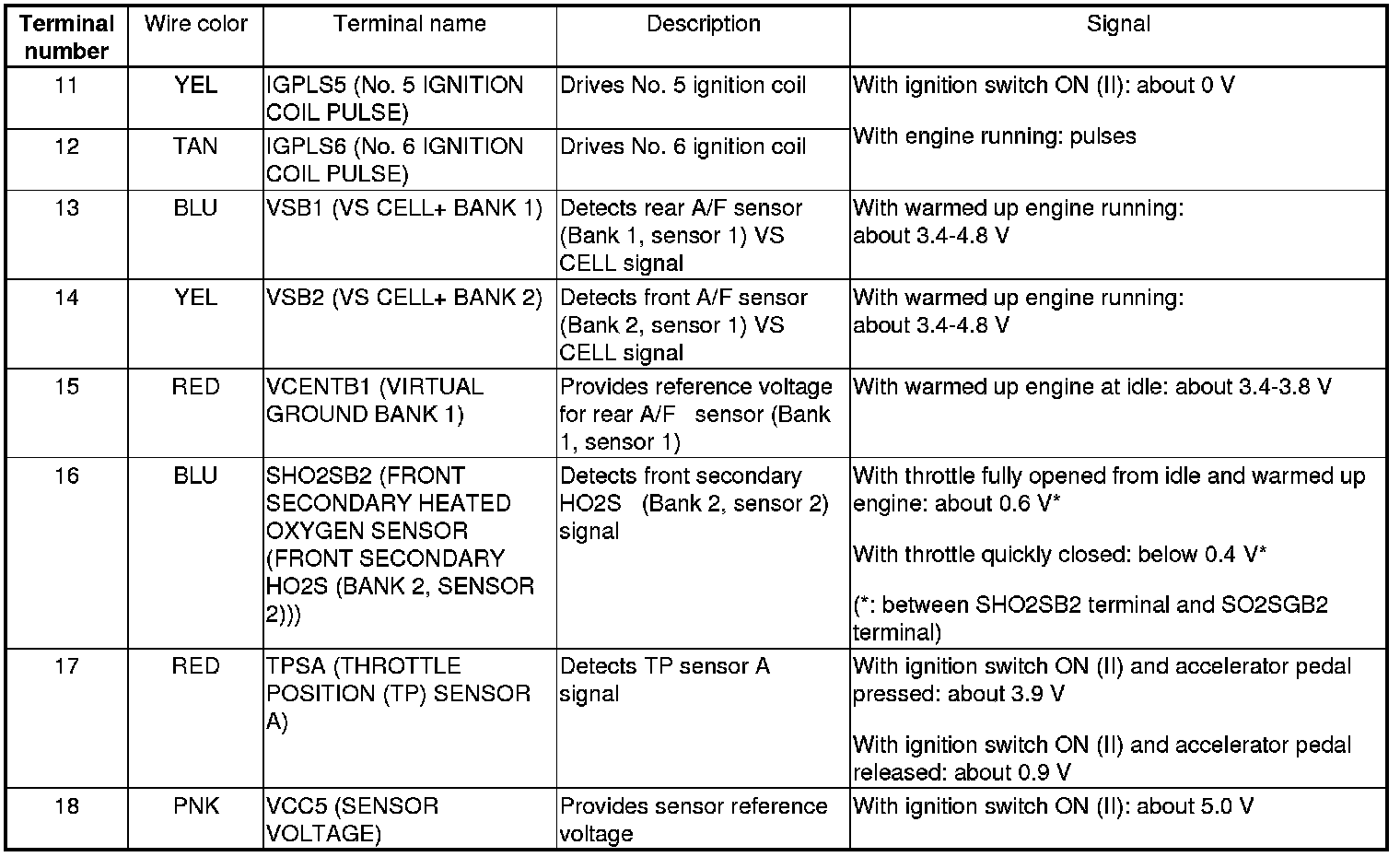

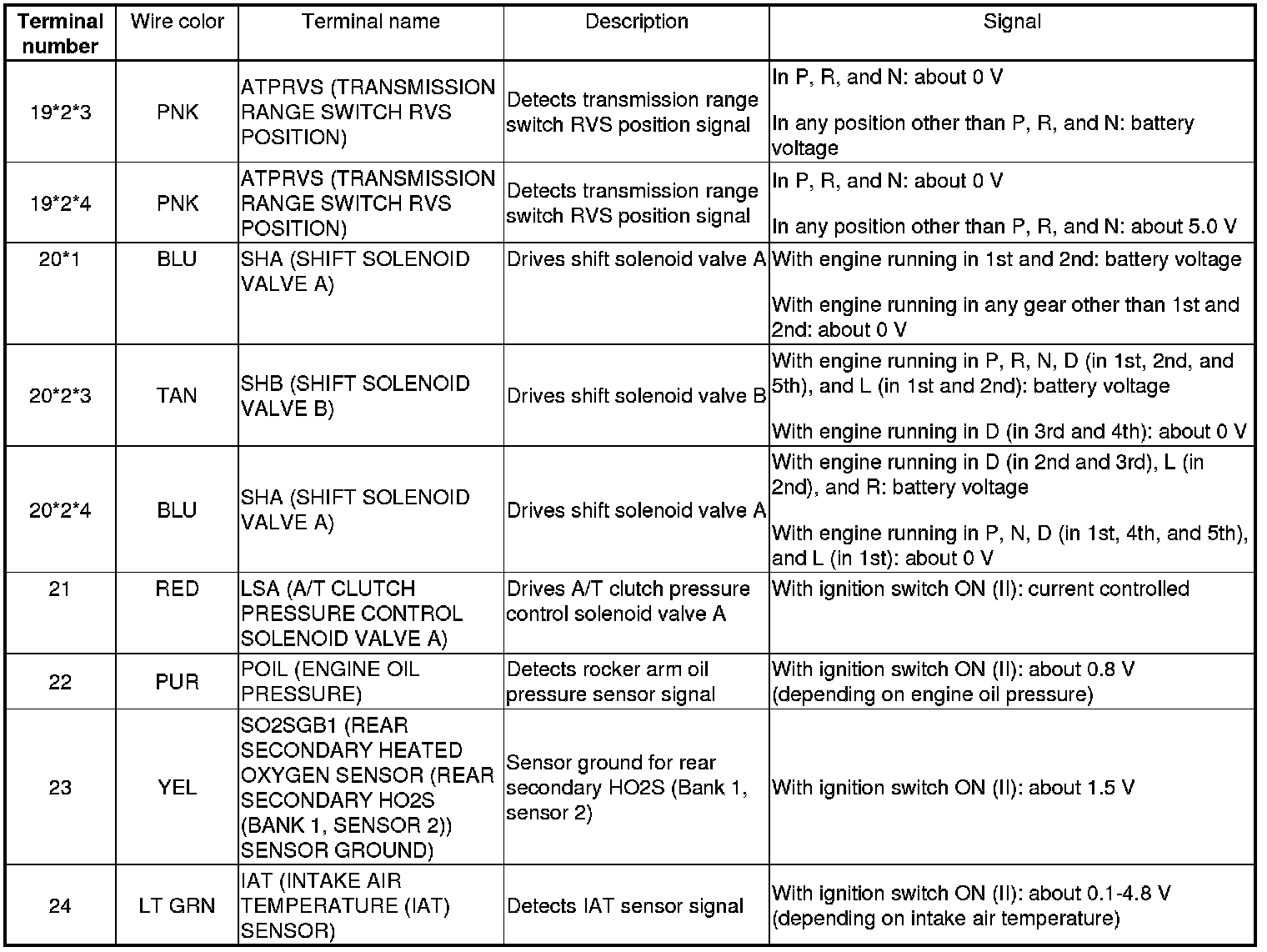

PCM Inputs and Outputs at PCM Connector A (square) (49P)

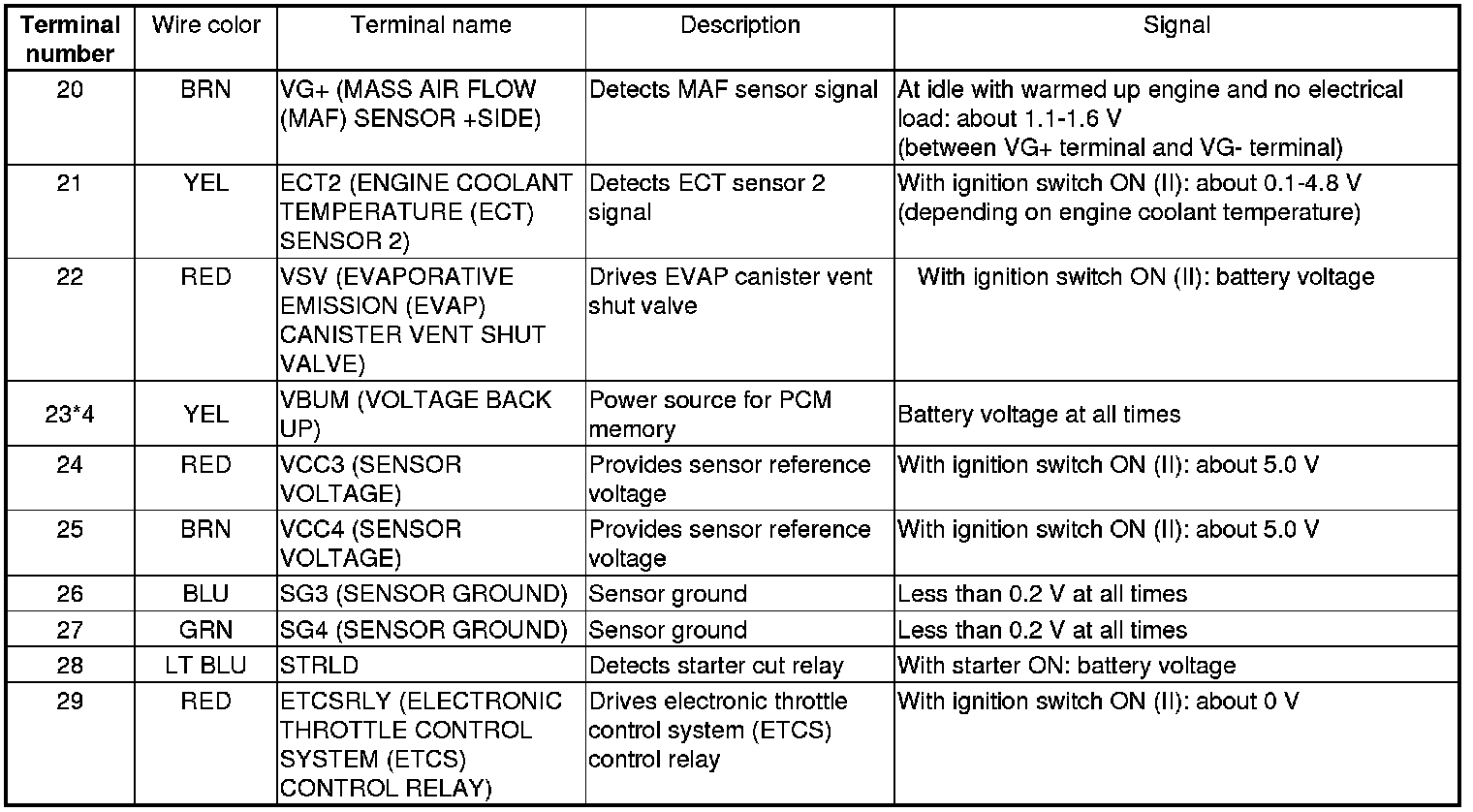

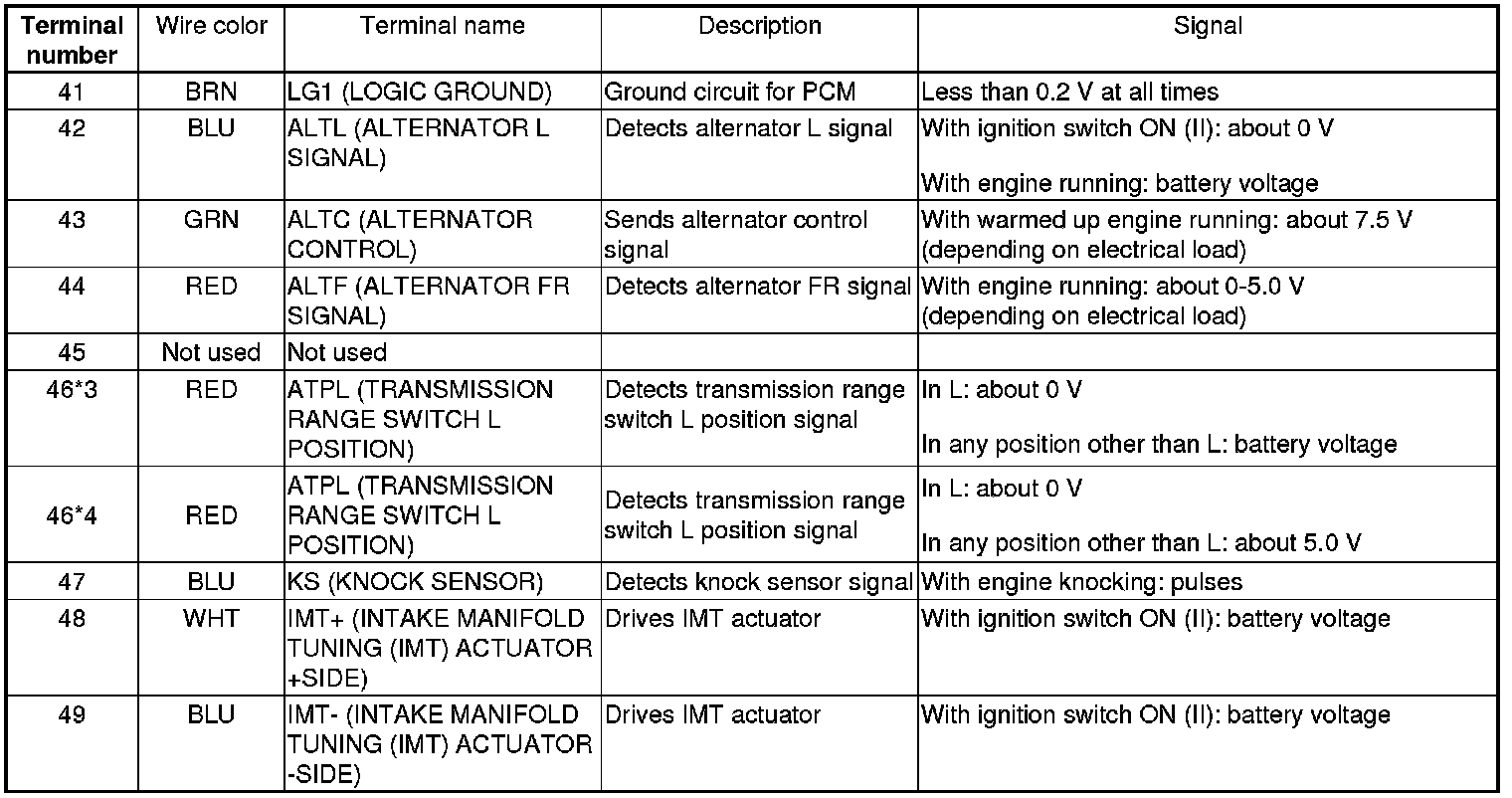

PCM Inputs and Outputs at PCM Connector B (triangle) (49P)

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the General Troubleshooting Information for more details.

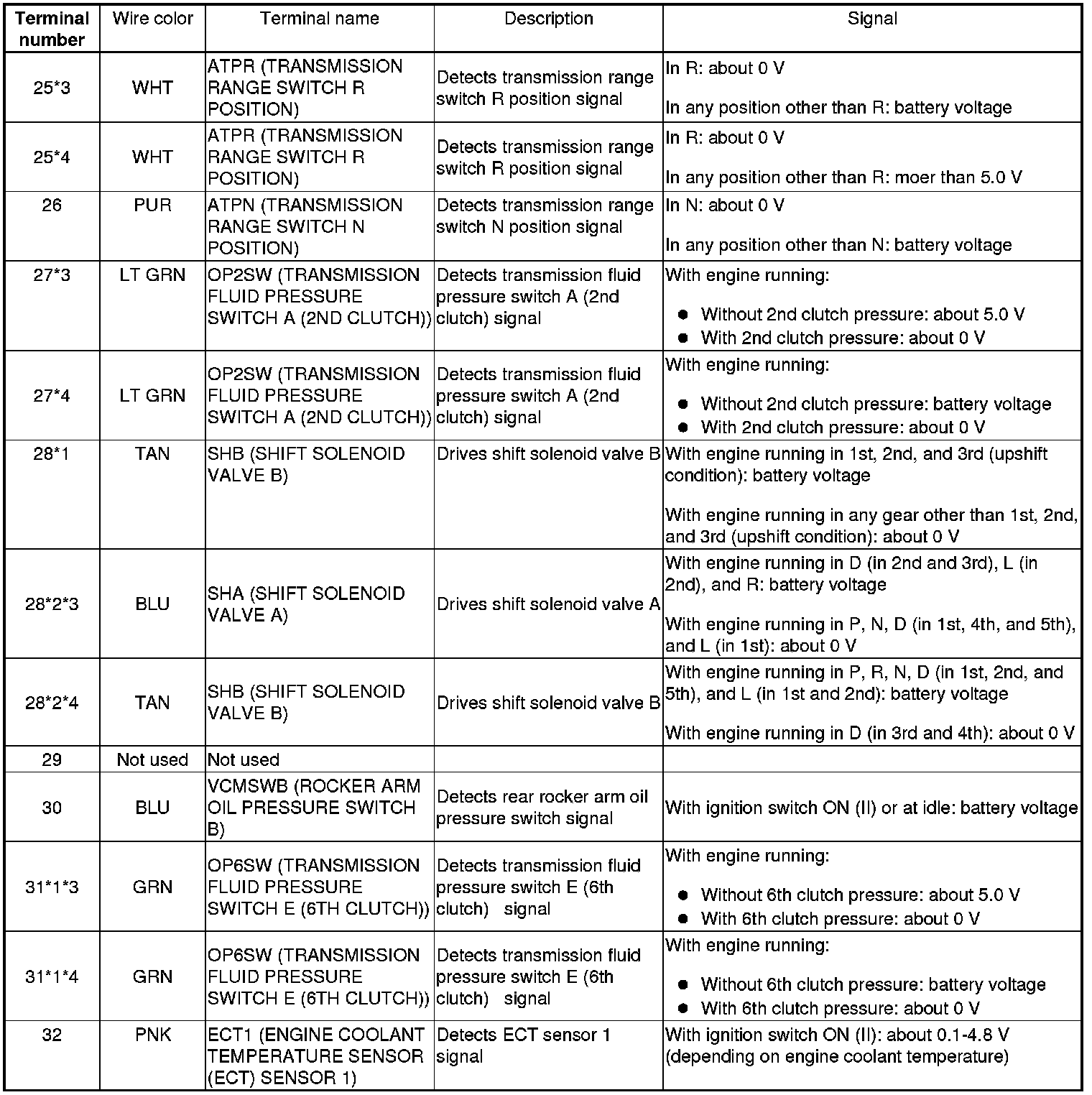

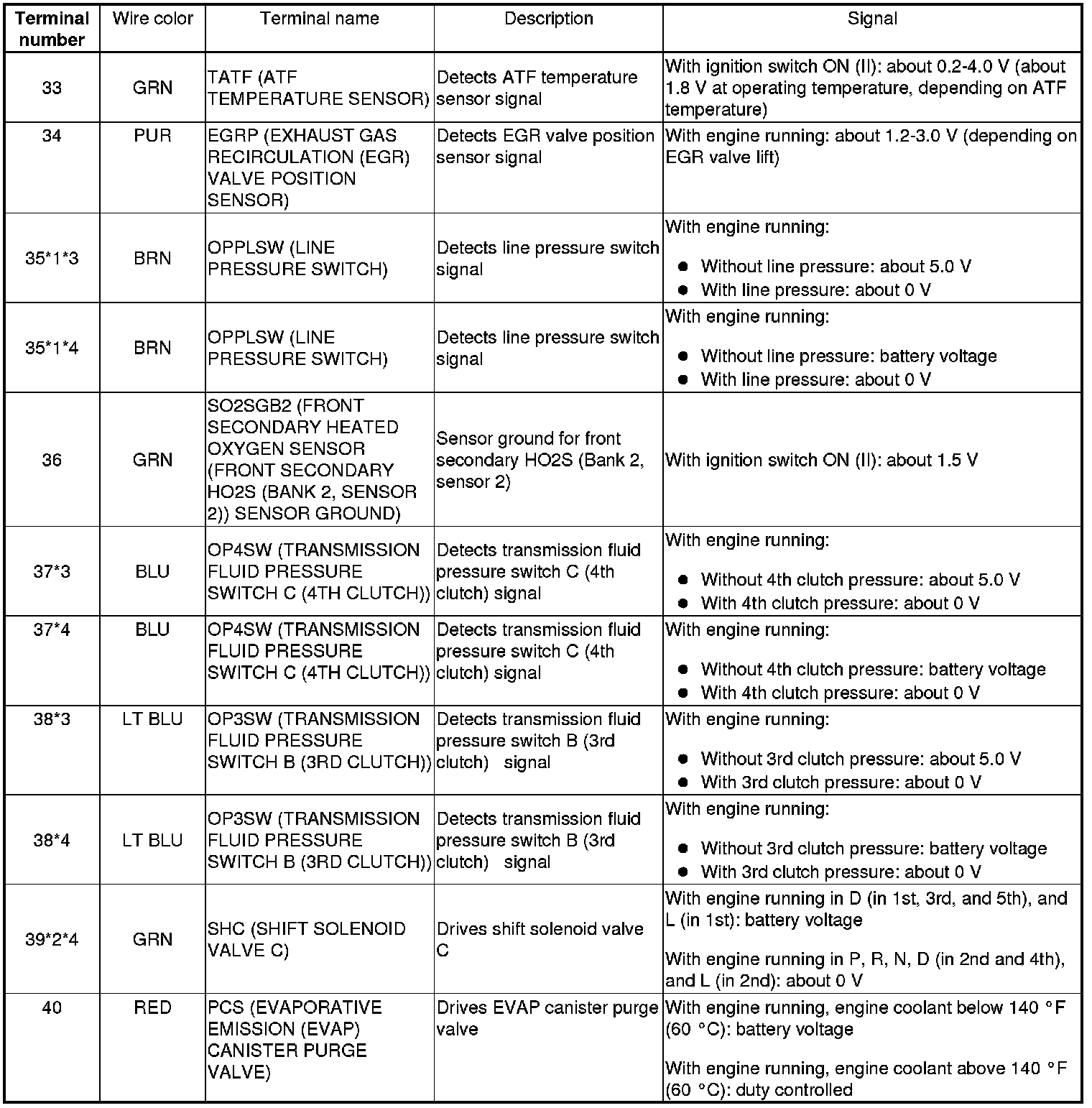

PCM Inputs and Outputs at PCM Connector C (circle) (49P)

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the General Troubleshooting Information for more details.

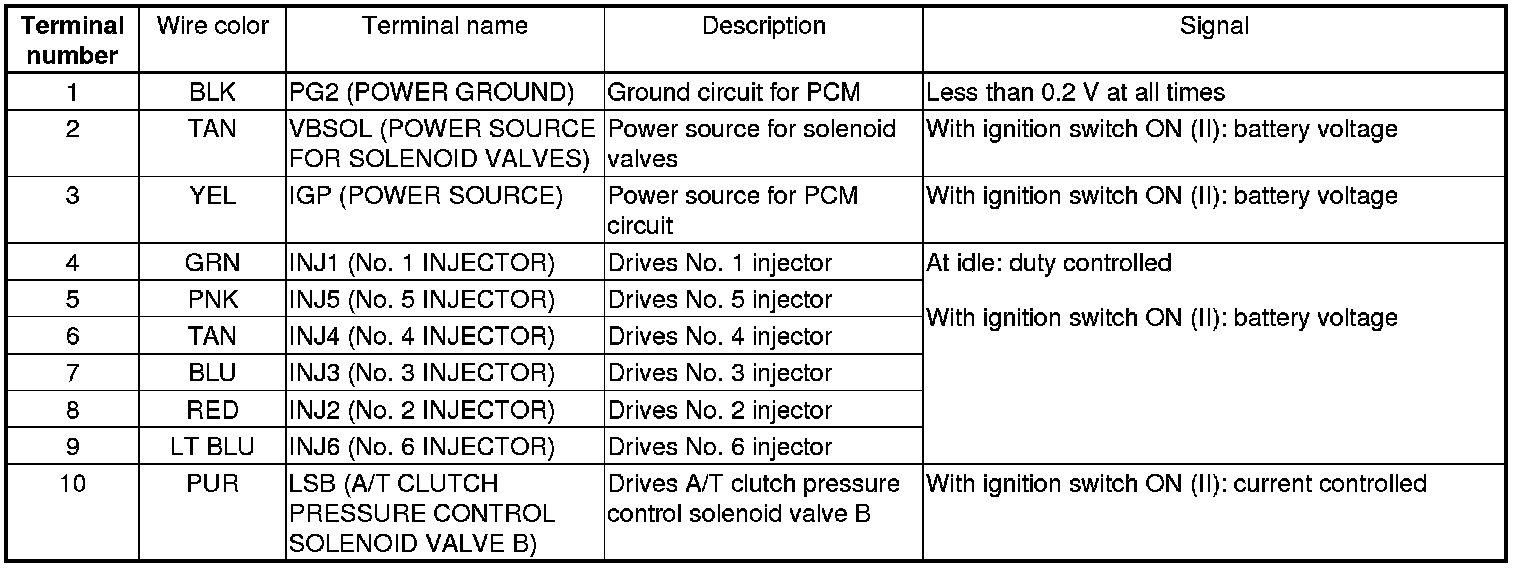

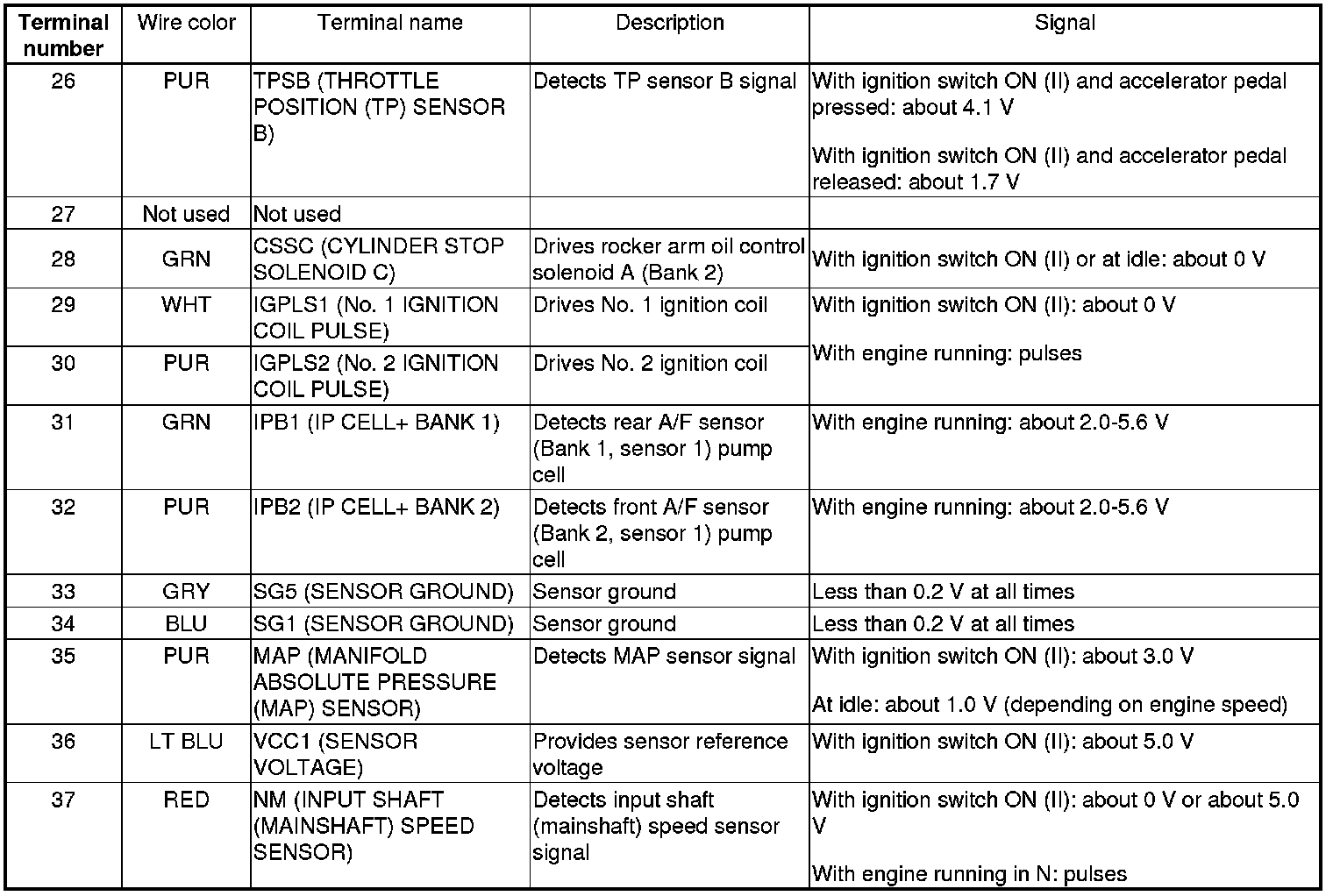

PCM Inputs and Outputs at PCM Connector C (circle) (49P)

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the General Troubleshooting Information for more details.

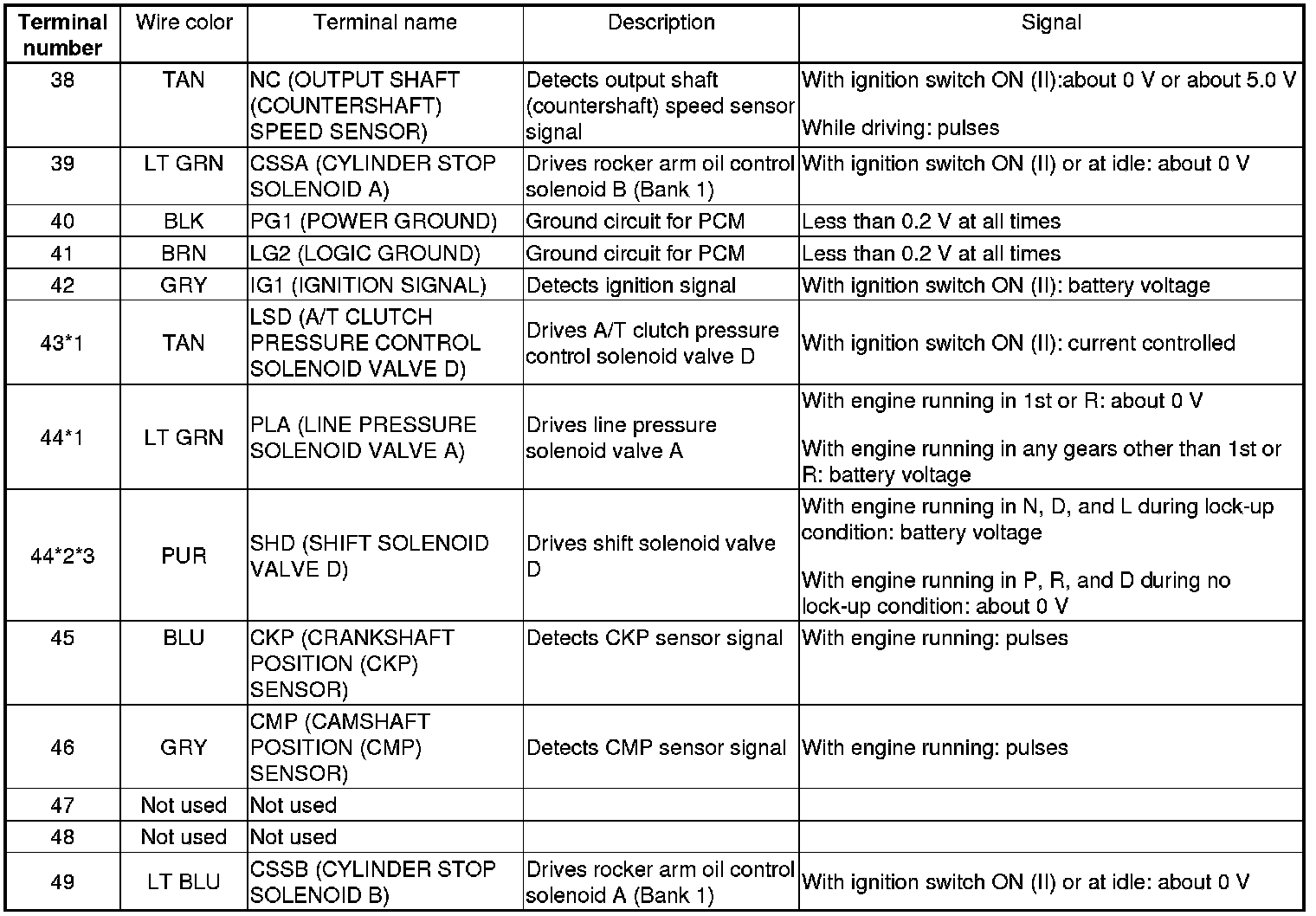

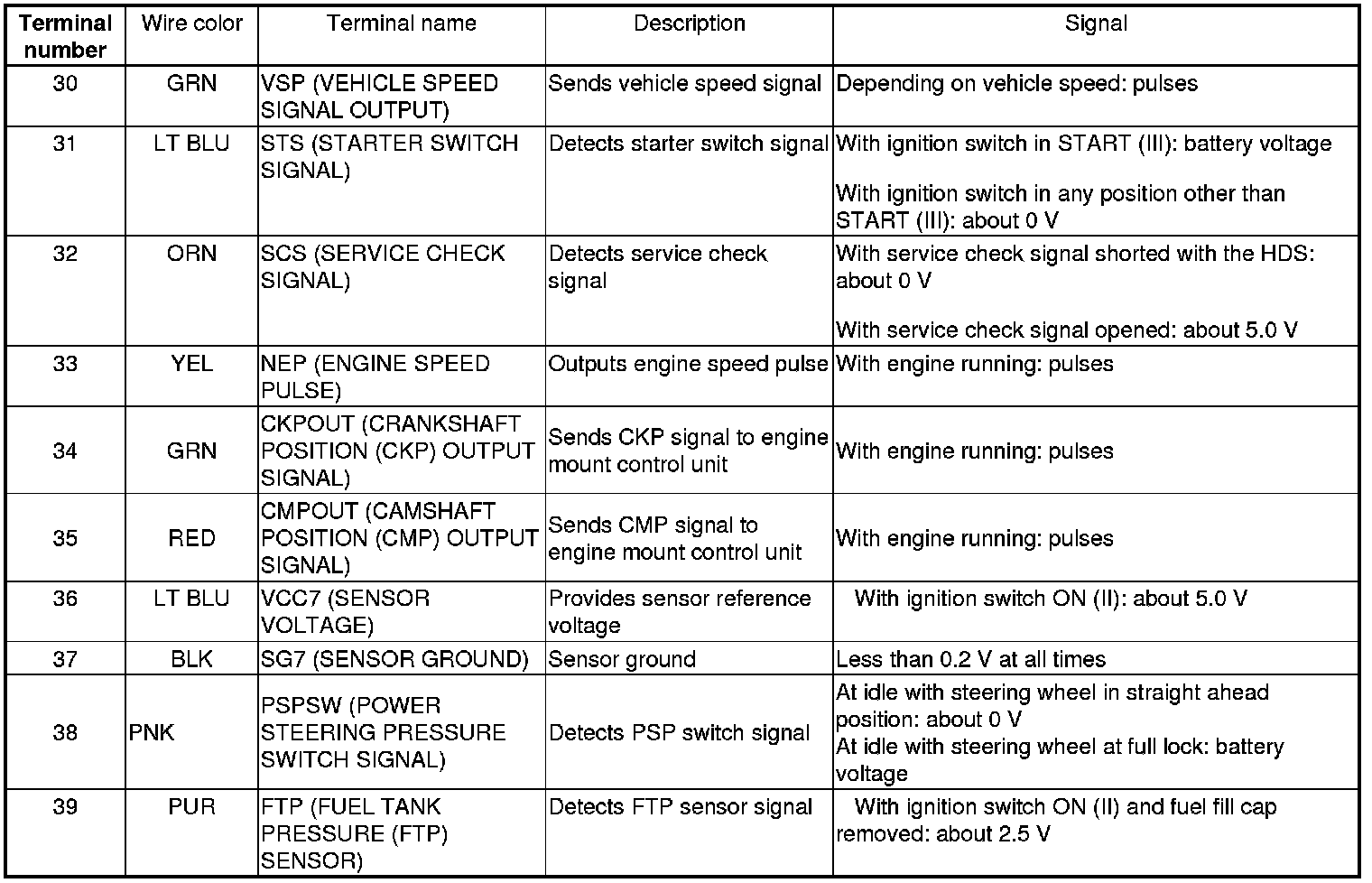

PCM Inputs and Outputs at PCM Connector C (circle) (49P)

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the General Troubleshooting Information for more details.

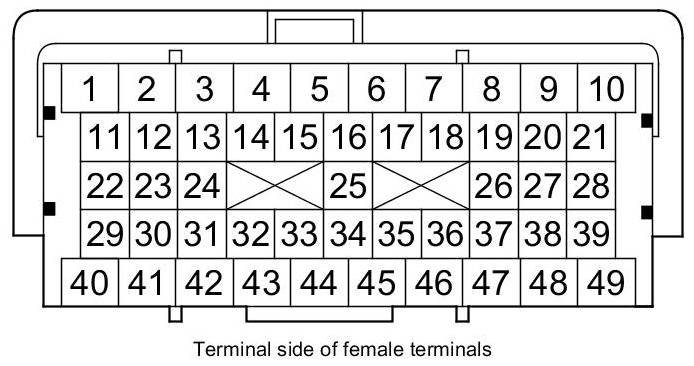

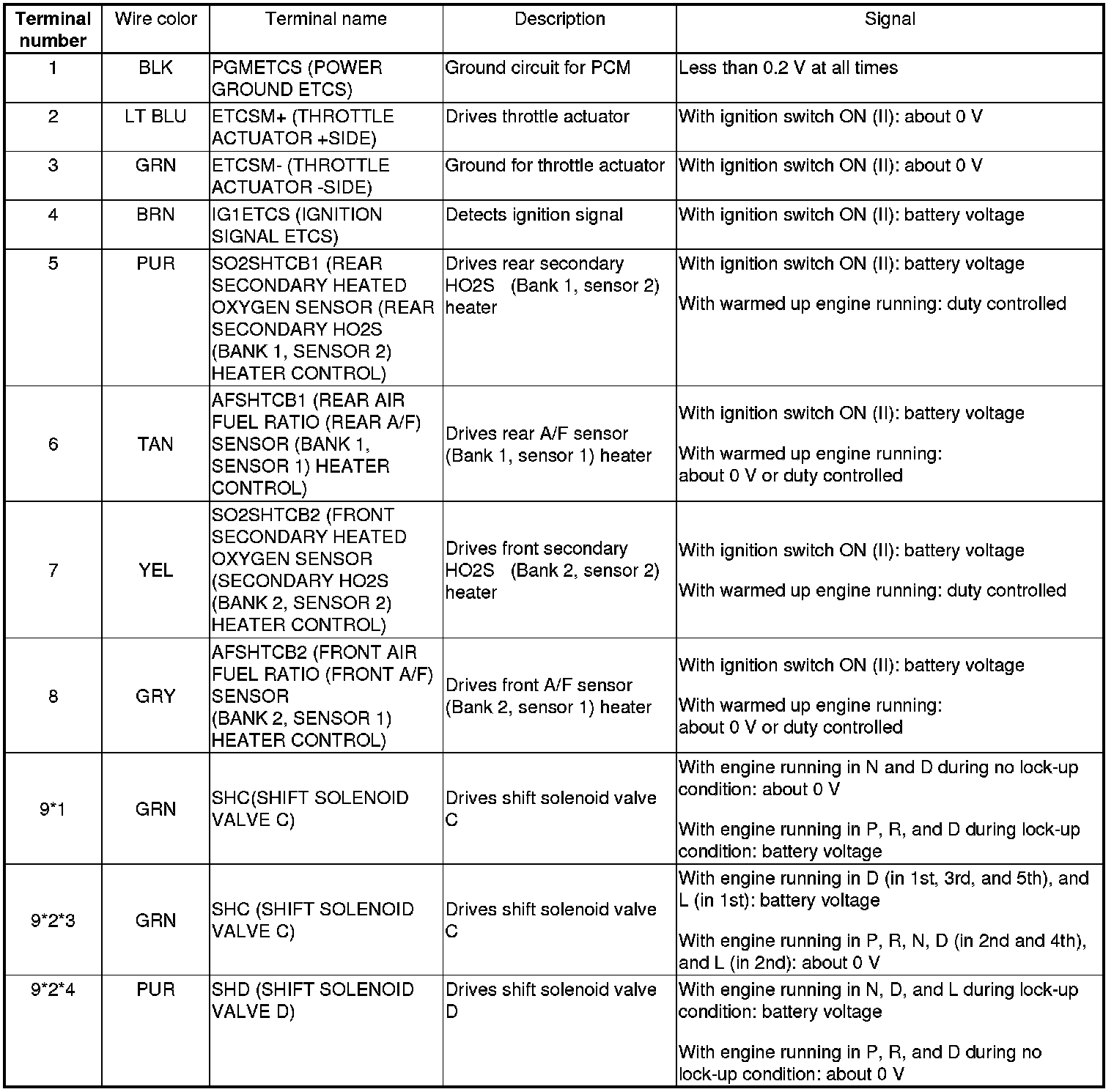

PCM Inputs and Outputs at PCM Connector C (circle) (49P)

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the General Troubleshooting Information for more details.

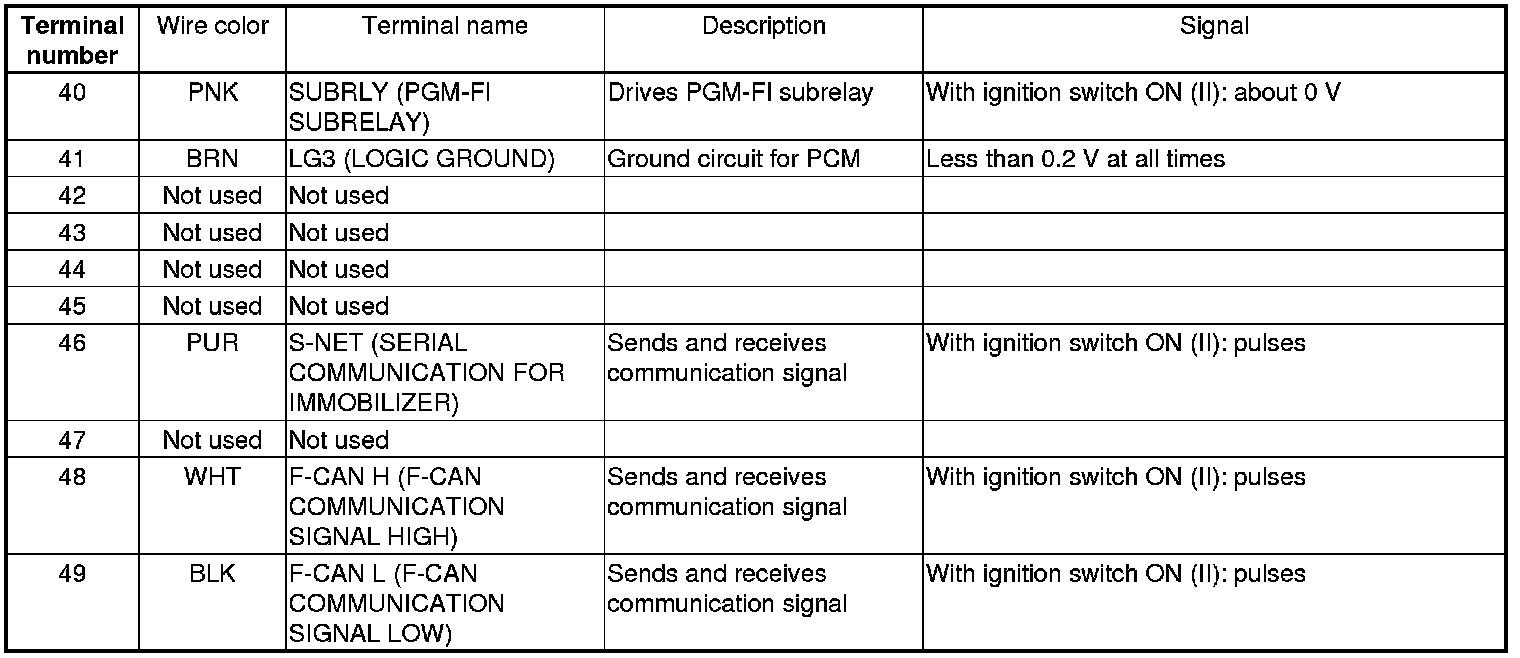

PCM Inputs and Outputs at PCM Connector C (circle) (49P)

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the General Troubleshooting Information for more details.

PCM Inputs and Outputs at PCM Connector C (circle) (49P)

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the General Troubleshooting Information for more details.
