Emission Control Systems: Specifications

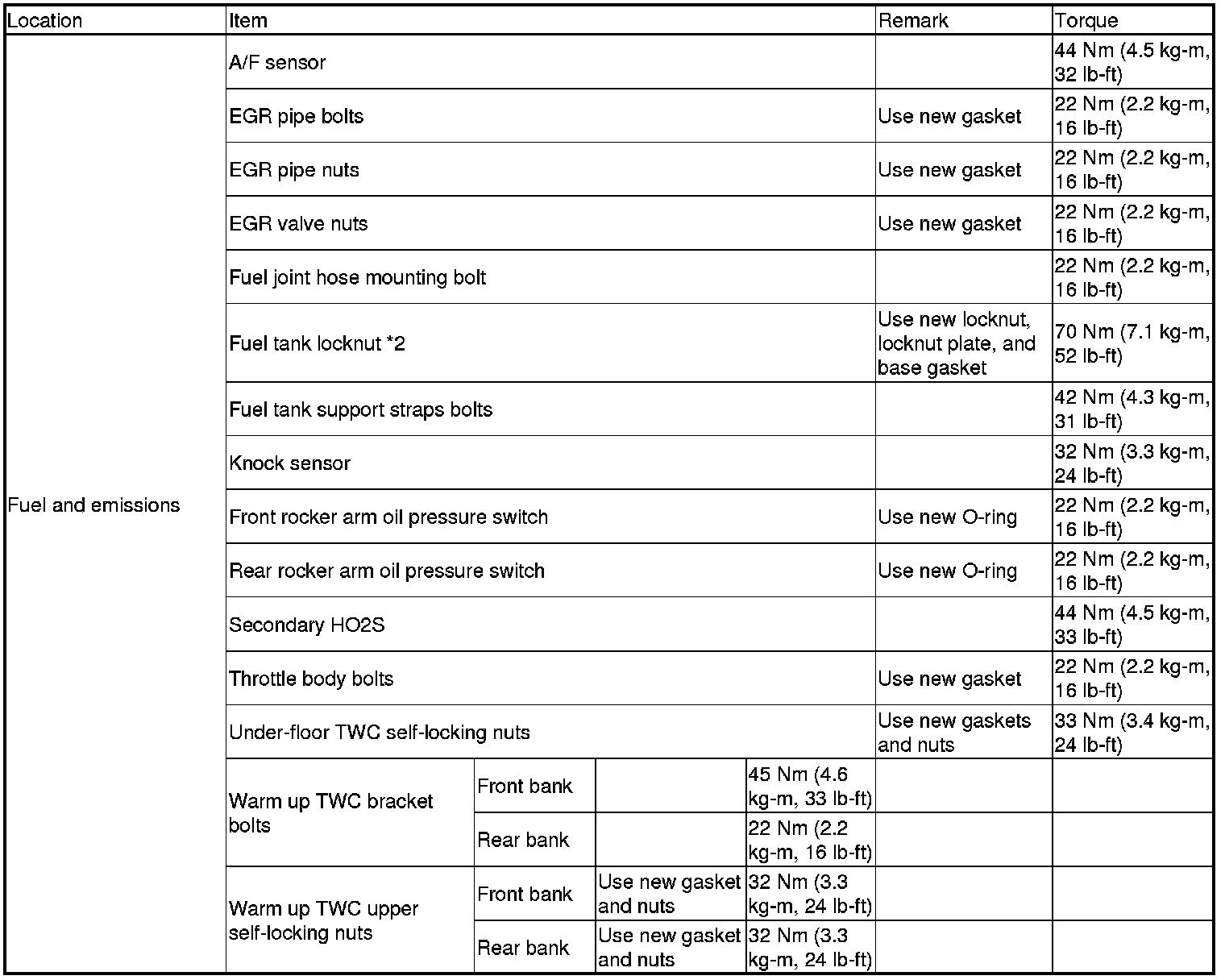

Torque Specifications

NOTE:
*Refer to the each S/M section for the precautions and complete procedures.
*Refer to the each S/M section for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the S/M procedures closely for torque, sequence, and special steps.

Fuel and Emissions
