Instrument Panel Control Module: Service and Repair

Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO data from the gauge control module with the HDS Programming and Relearning.

1. Turn the ignition switch to LOCK (0).

2. Remove the instrument visor Instrument Visor Removal/Installation.

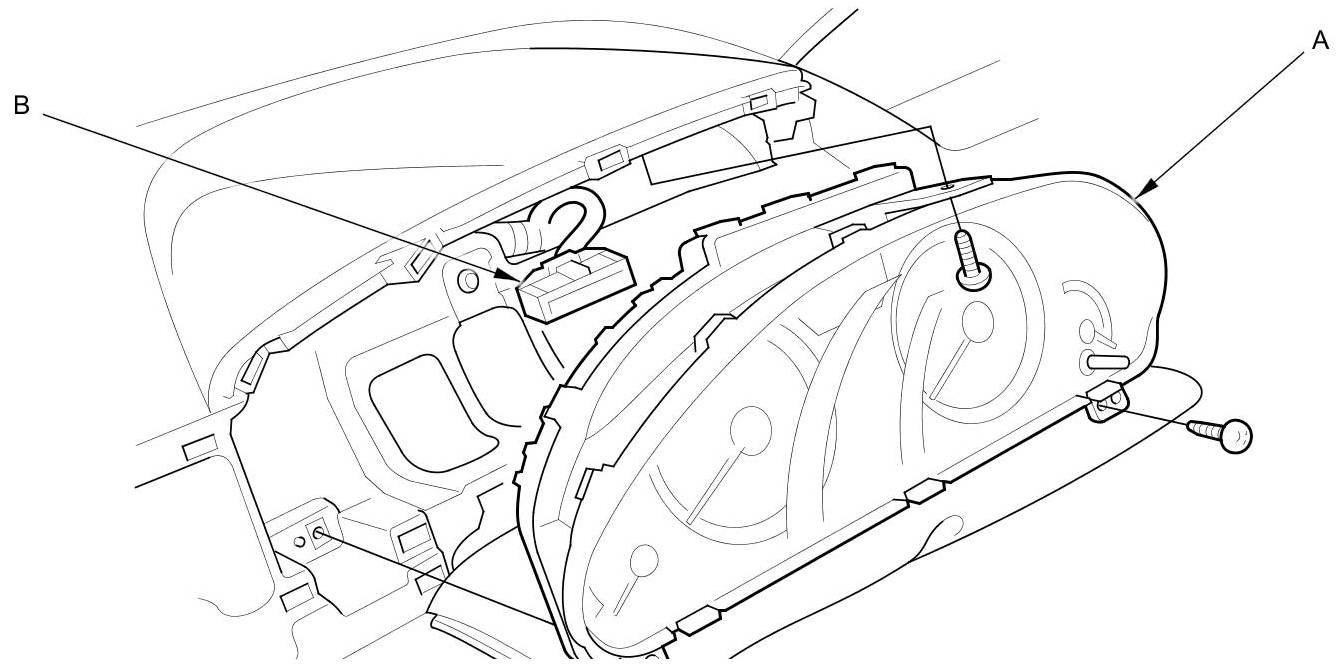

3. Remove the three screws from the gauge control module (A).





4. Disconnect the 32P connector (B) from the gauge control module.

5. Install the gauge control module in the reverse order of removal.

6. Rewriting the ODO data on a new gauge control module Programming and Relearning.

NOTE: Check the official Honda website for more information on how to write odometer information to a gauge control module that will not communicate with the HDS.
