Power Mirror Switch: Service and Repair

Power Mirror Switch Test/Replacement

1. Remove the power window master switch Power Window Master Switch Replacement.

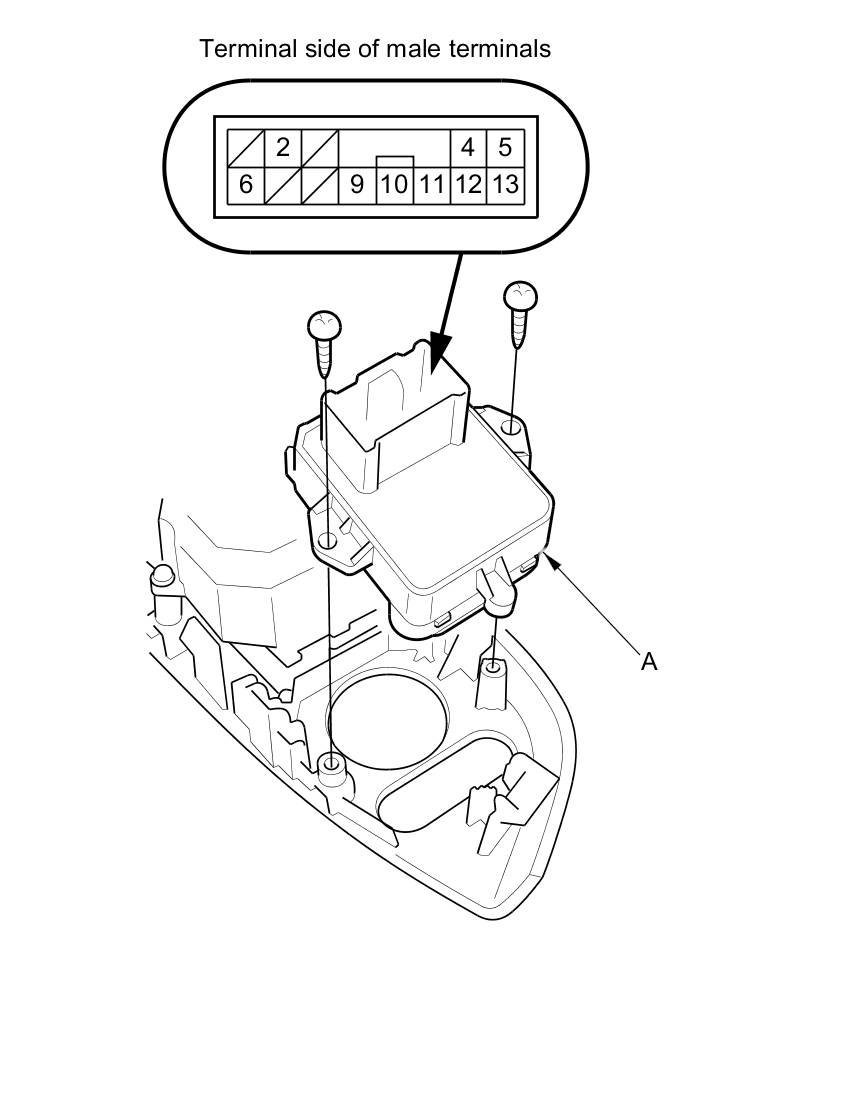

2. Disconnect the 13P connector from the power mirror switch (A).

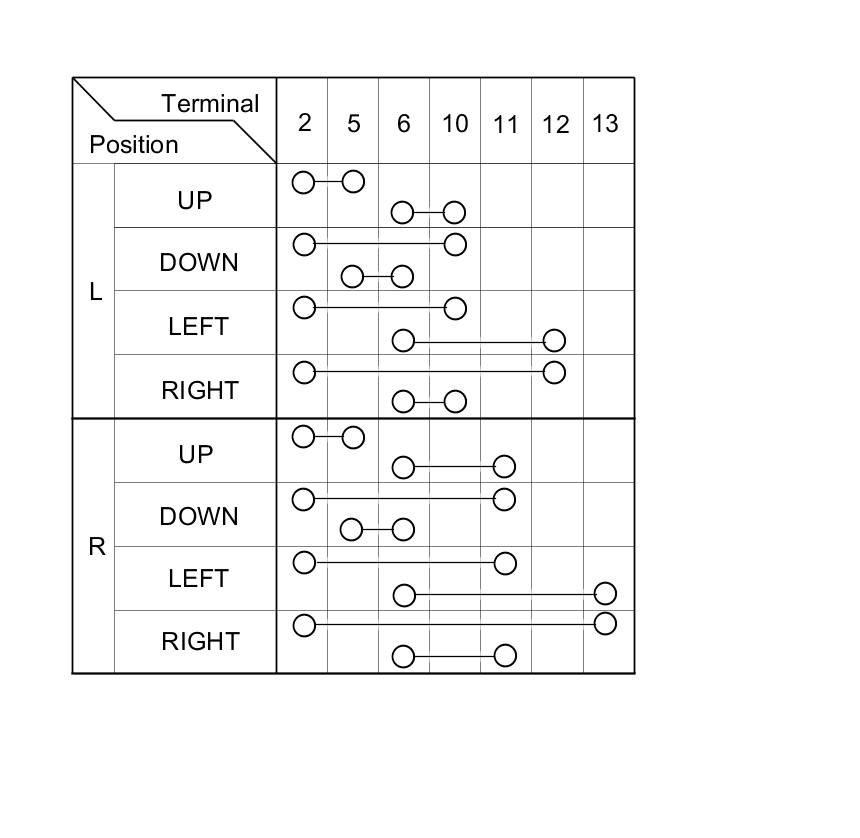

3. Check for continuity between the terminals in each switch position according to the table.

Power Mirror Switch





4. If the continuity is not as specified, remove the screws and replace the power mirror switch.
