Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Air Temperature Sensor Replacement

1. Remove the front grille Front Grille Replacement.

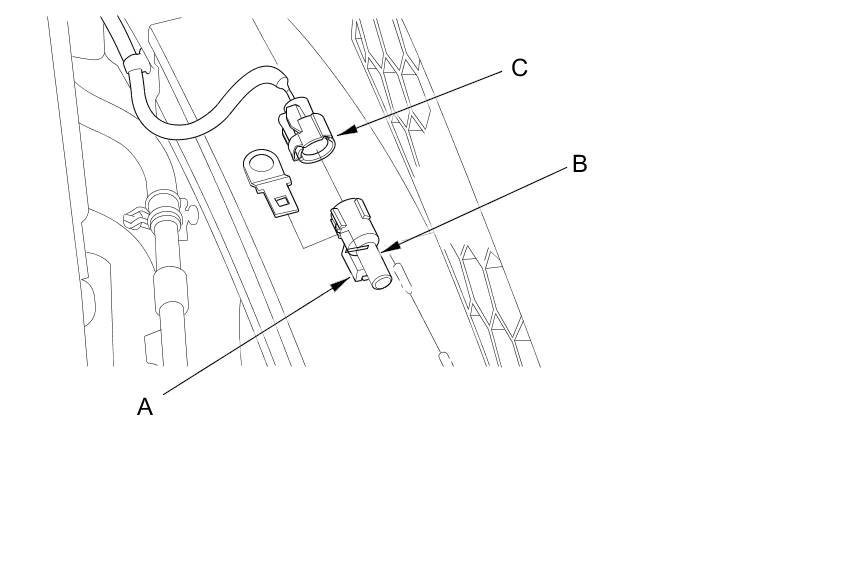

2. Lift the tab (A) to release the lock, then remove the outside air temperature sensor (B) from the back of the front bumper. Disconnect the 2P connector (C) from the outside air temperature sensor.





3. Install the sensor in the reverse order of removal.
