Connector Locations




Fuse/Relay Box Connector Locations

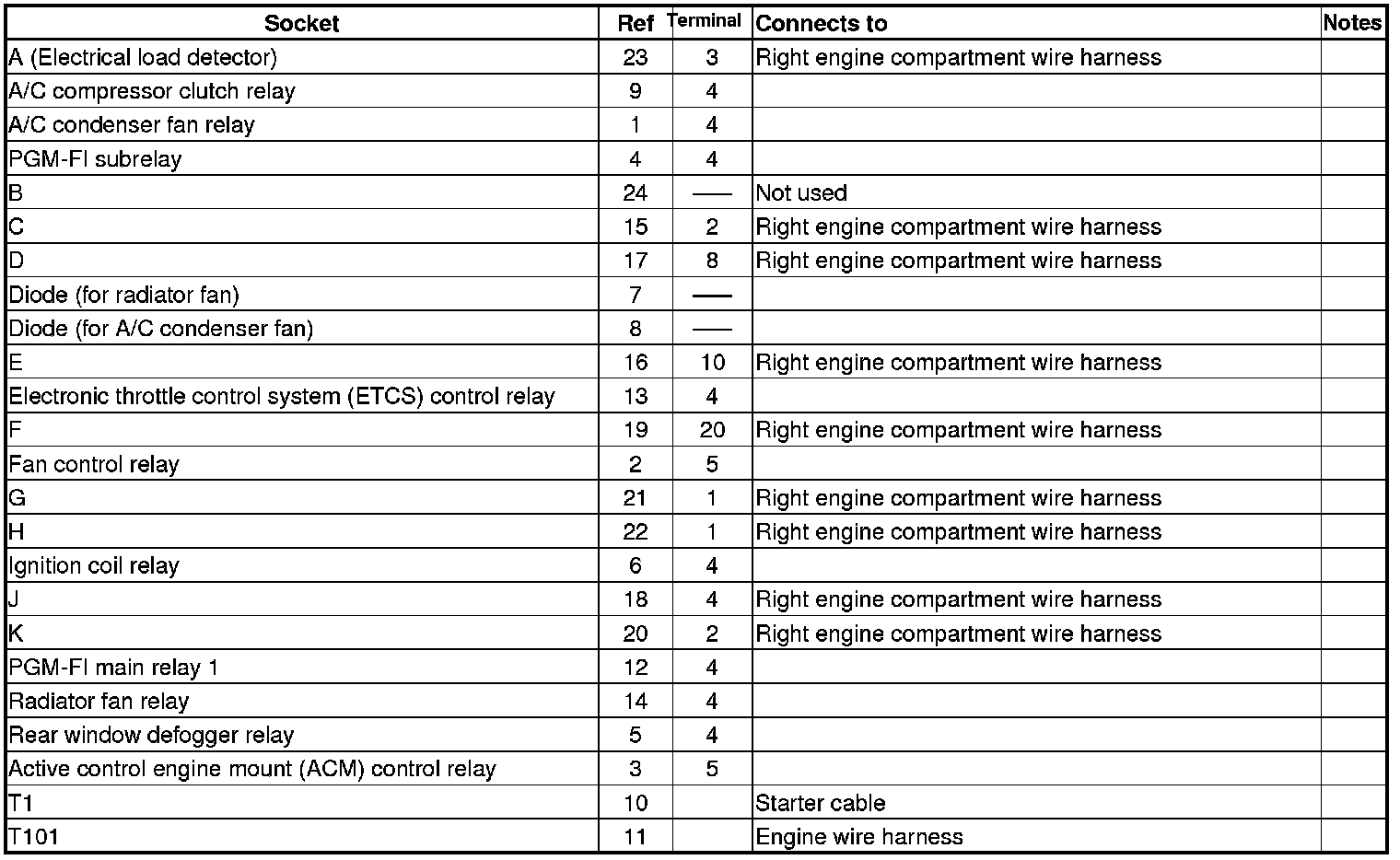

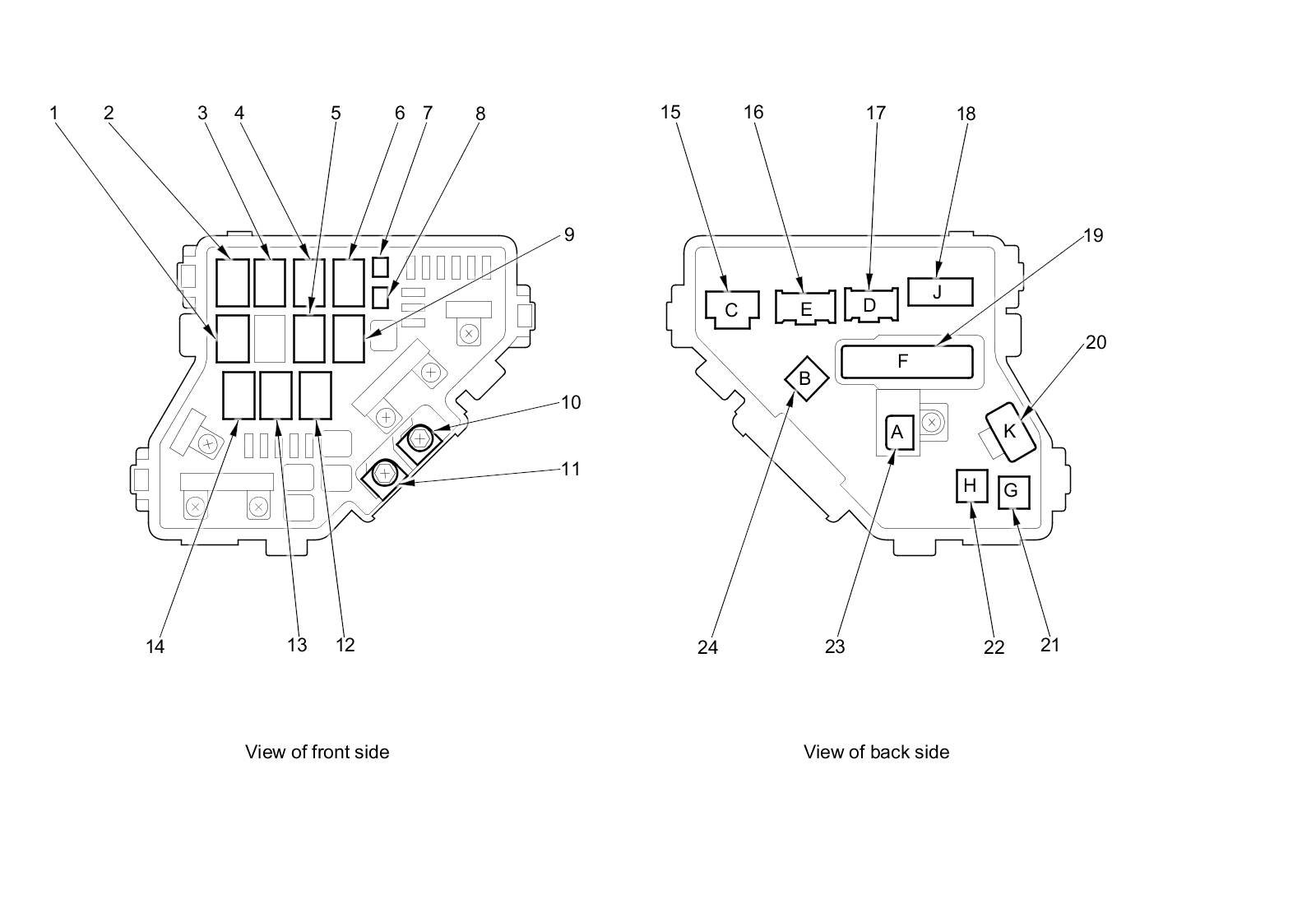

Under-hood Fuse/Relay Box

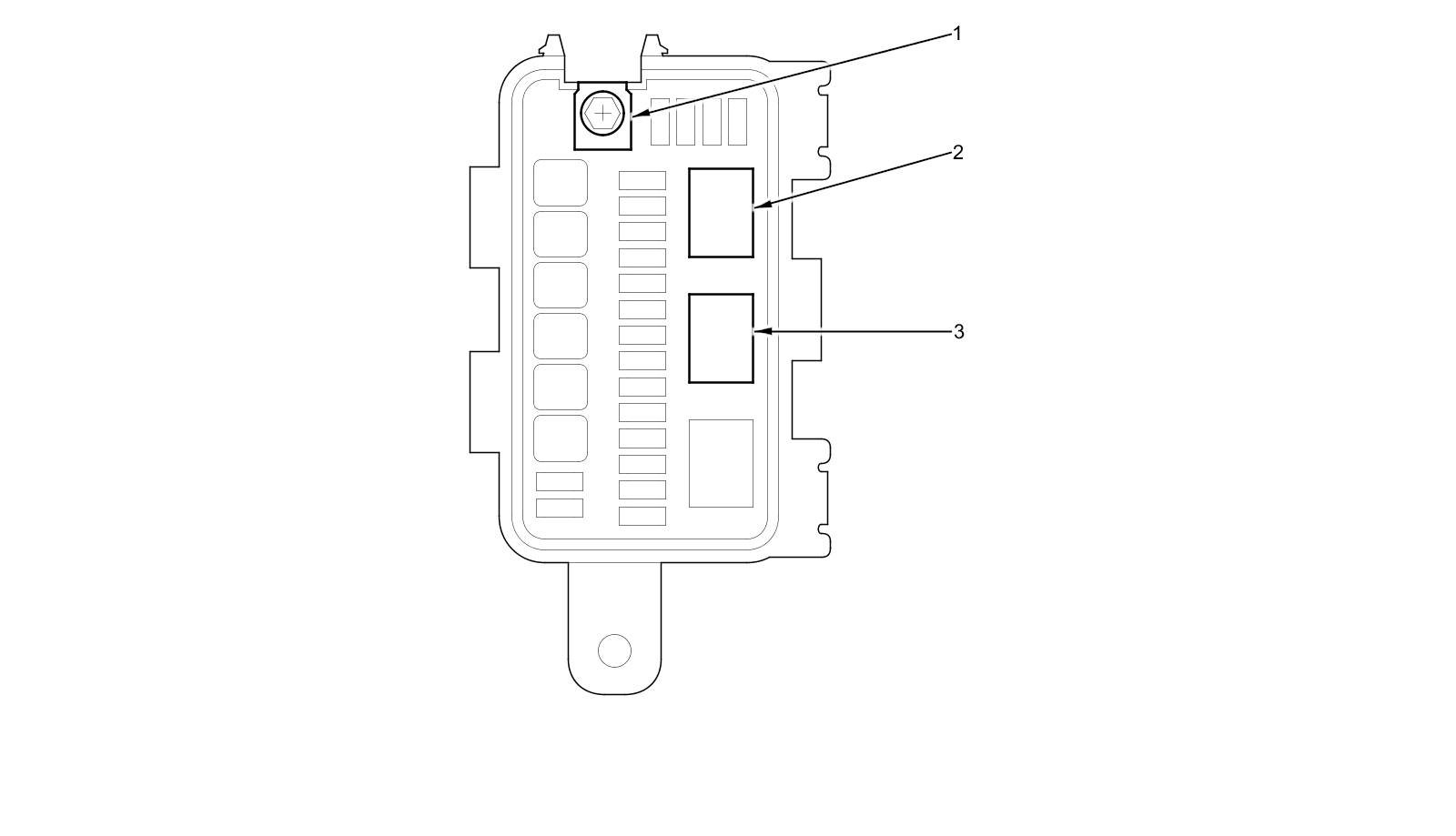

Auxiliary Under-hood Fuse/Relay Box










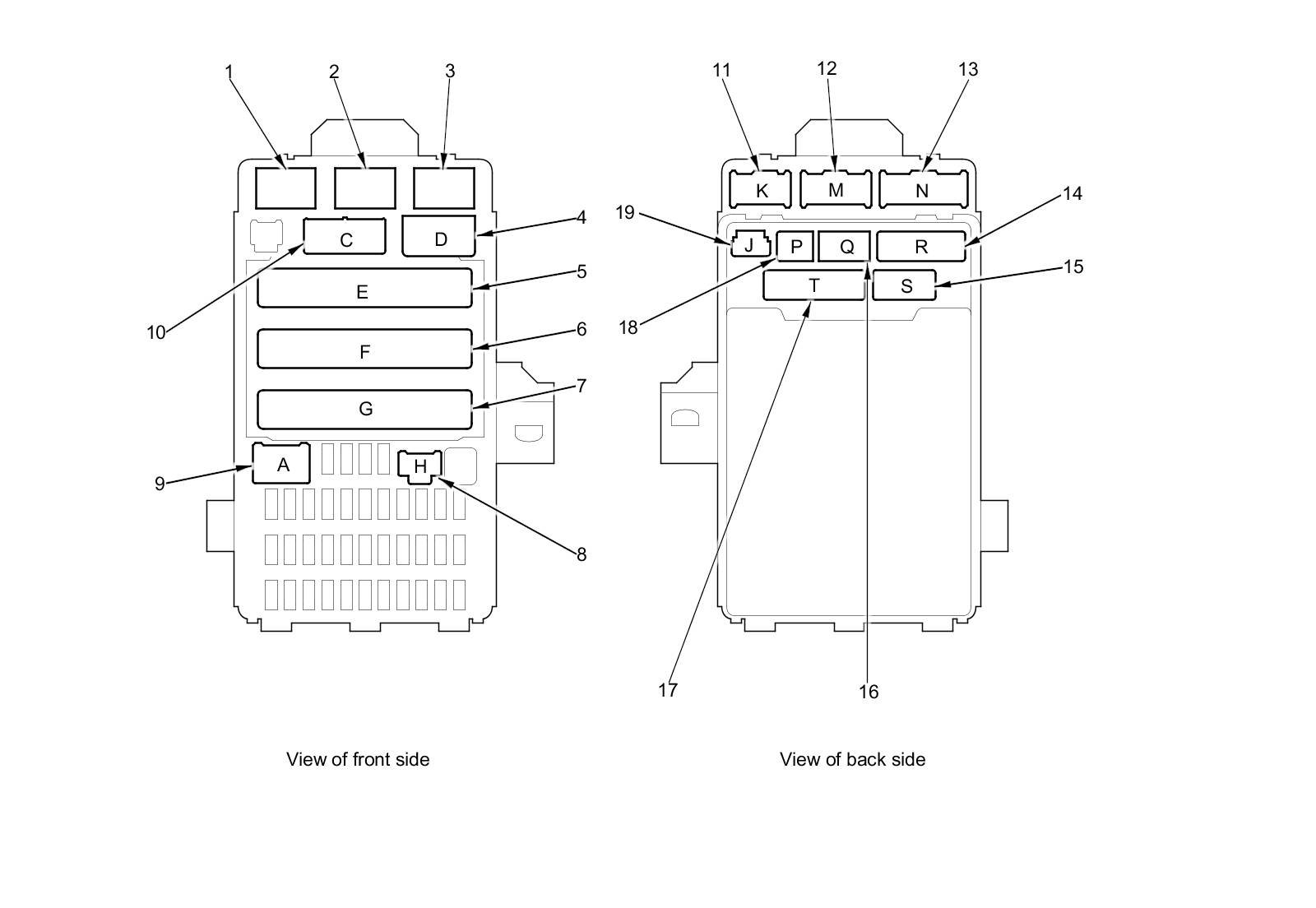

Under-dash Fuse/Relay Box

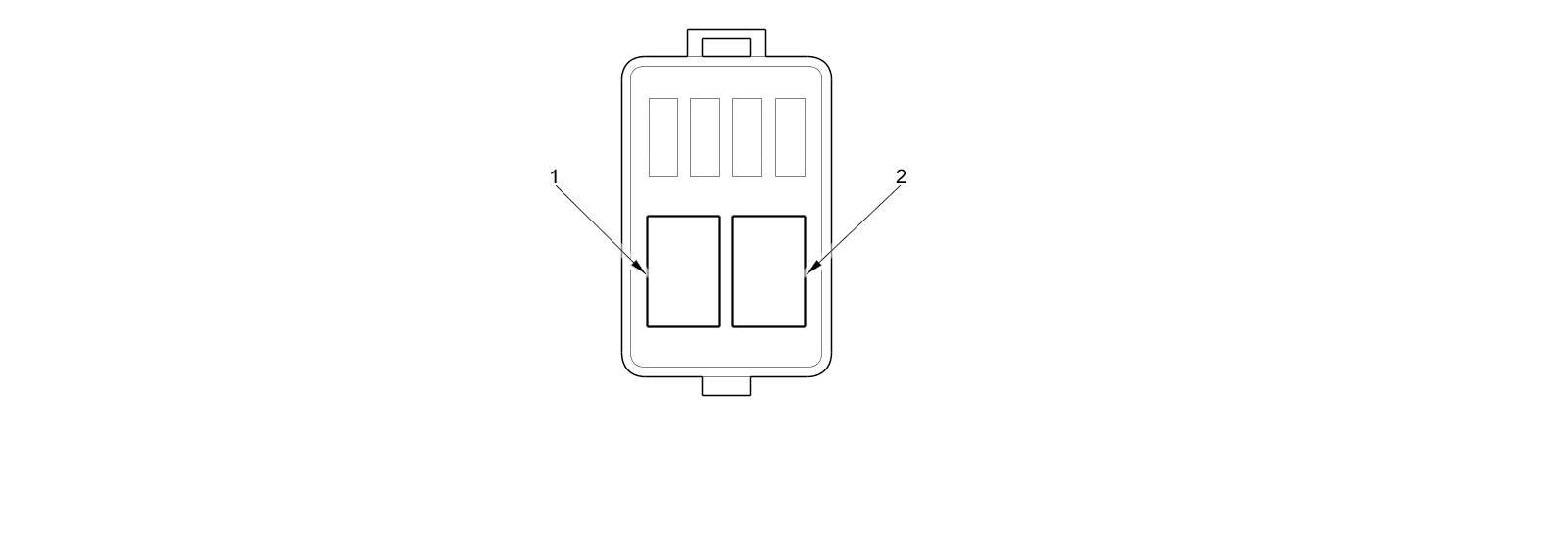

Rear Fuse/Relay Box
