Rear Rocker Arm Oil Control Valve Replacement

Rear Rocker Arm Oil Control Valve Replacement

1. Remove the rear rocker arm assembly.

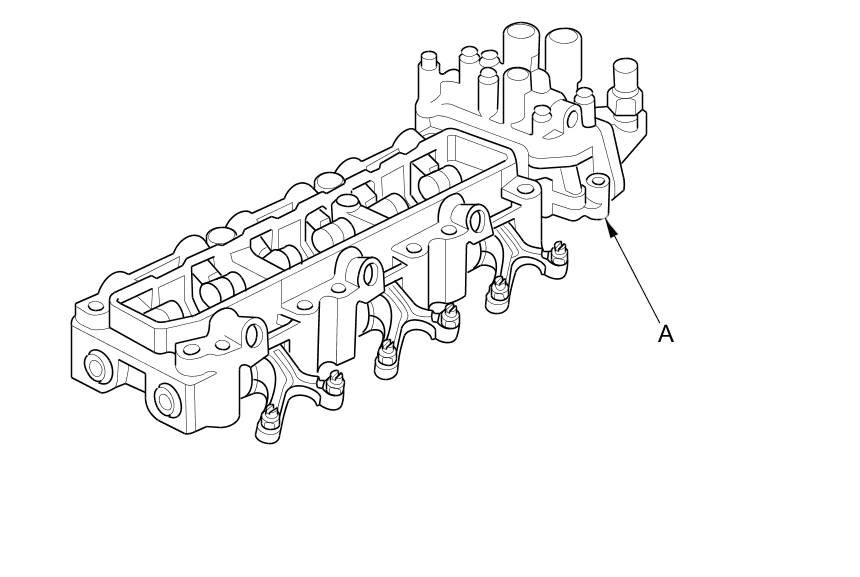

2. Remove the rear rocker arm oil control valve (A).






3. Install the rear rocker arm oil control valve in the reverse order of removal.

NOTE: When installing the rear rocker arm assembly, refer to the camshaft, rocker arm assembly, camshaft seal, and pulley installation procedure.
