Switch Test/Replacement

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX)
, and the precautions and procedures (see PRECAUTIONS AND PROCEDURES
) before doing repairs or servicing.

Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION)
Separate the lumbar support switch cover (A) from the switch (B).

Fig 1: Identifying Lumbar Support Switch Cover, Switch And 5P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (C) from the switch.
Check for continuity between the terminals in each switch position according to the table.

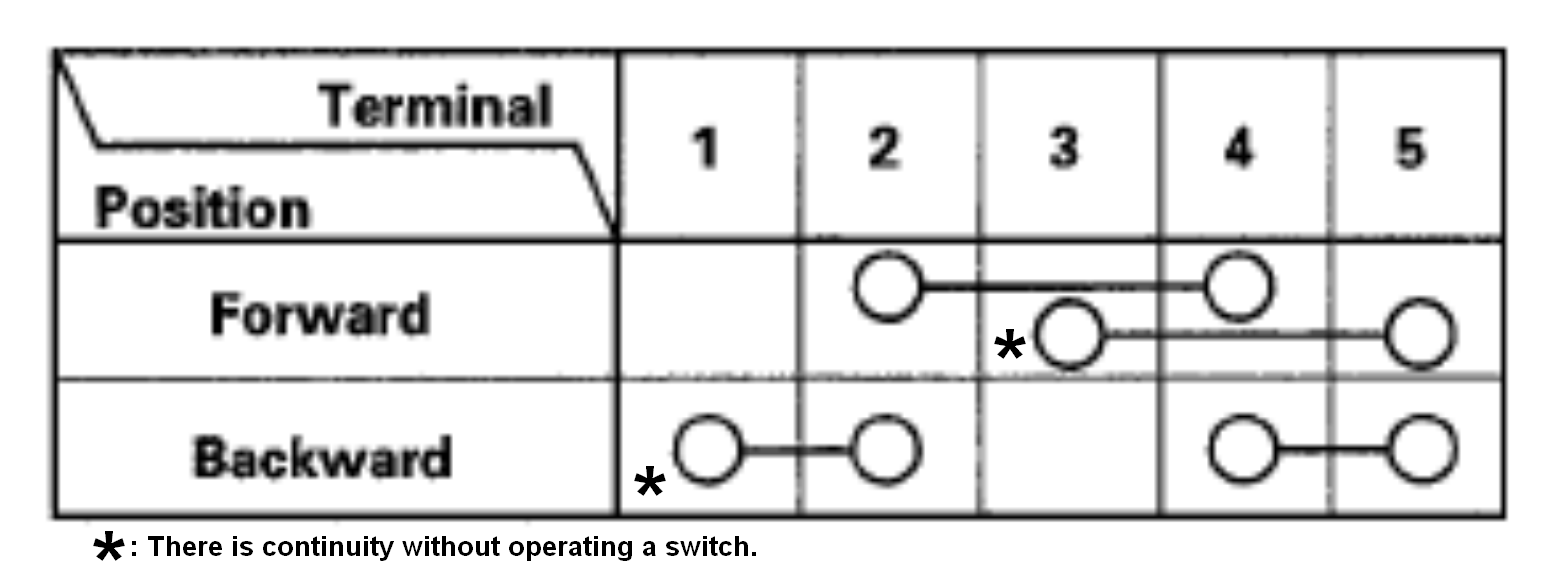

Fig 2: Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
