Relays And Control Unit Locations: Roof

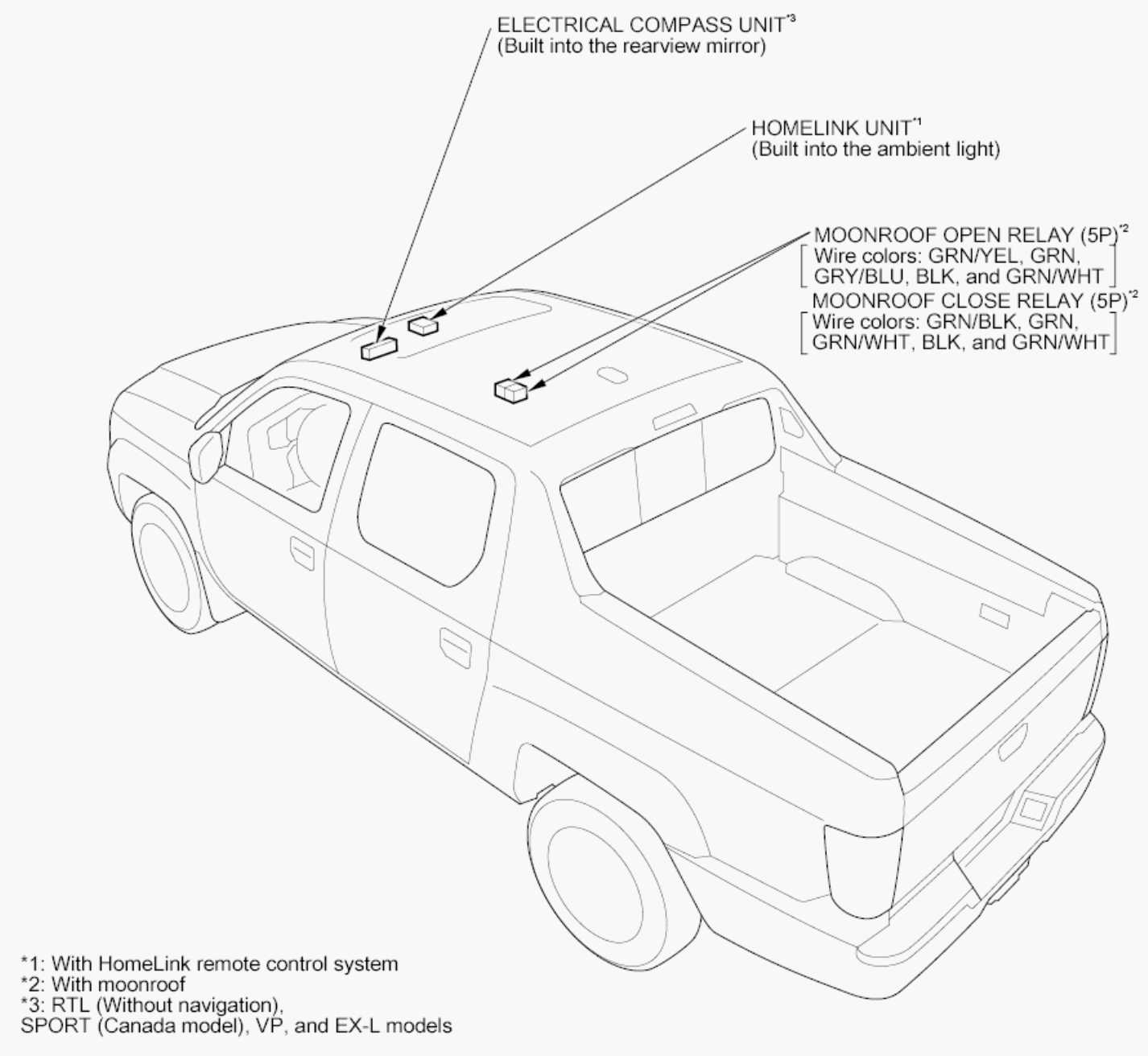

Fig 1: Identifying Roof Relay And Control Unit Locations
G00509944Courtesy of AMERICAN HONDA MOTOR CO., INC.
